Ego 55 downlight EL 3000K Round Aluminium IK09

IP65/67

Downloadable files

3D Model
  • Ego 55 Downlight Round.3ds
  • Ego 55 Downlight Round.stp
Silhouette
  • Ego 55 DL_Round.jpg
Instructions
  • Y513000354E Ego 55-90 Down Light.pdf
IES Europe
  • T4081ELPTW00.IES
IES USA
  • T4081ELPTW00.IES
LDT File
  • T4081ELPTW00.LDT
LDT PDF
  • T4081ELPTW00.PDF
FEATURES
  • Product Code: T4081ELPTW00
  • Series: Architectural Outdoor
  • design by: Studio Artemide
LUMINAIRE
  • Power Supply: Electronic ballast supplied separately
  • Watt: 1,5W
  • Delivered lumen output: 77lm
  • CCT: 3000K
  • Efficiency: 75%
  • Efficacy: 77.50lm/W
  • CRI: 80

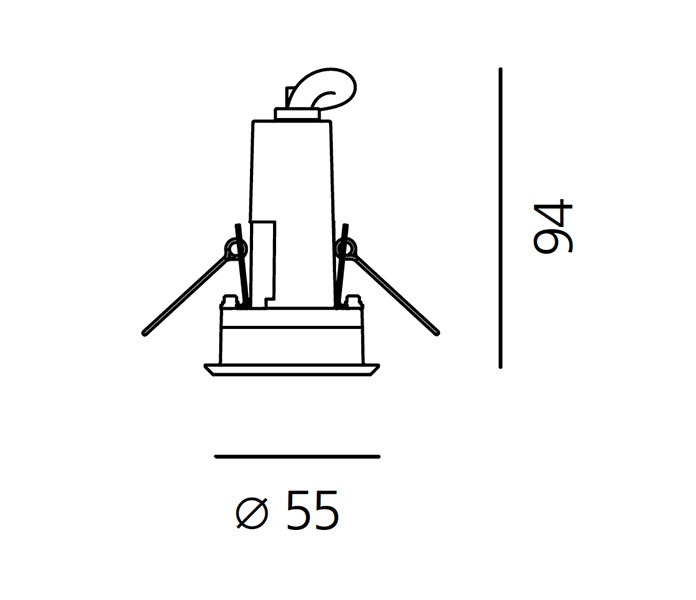

DIMENSIONS
  • Diameter: 55 mm
  • Cutout diameter: 47 mm
  • Recessed depth: 94 mm
  • Cutout shape: Rounded
  • Impact Resistance: IK10
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 1,5W
  • Delivered lumen output: 83lm
  • Color temperature (K): 3000K
  • CRI: 75
  • Color Tolerance: MacAdam 4SDCM
  • Efficacy: 69lm/W
  • Service Life: L70(10K) > 60500h
Notes

Wall Washer opticWide luminous flow suitable for lighting large areas.

Accessories
DRIVER 25W 24V DC
T409996
DRIVER 90W 24V DC
T409999
Driver - 24W - 24Vdc - IP67 - 185x35x35 (LxWxH) - DALI
DV1041
DRIVER 60W 24V DC
T409998
Download all Data sheet PDF
