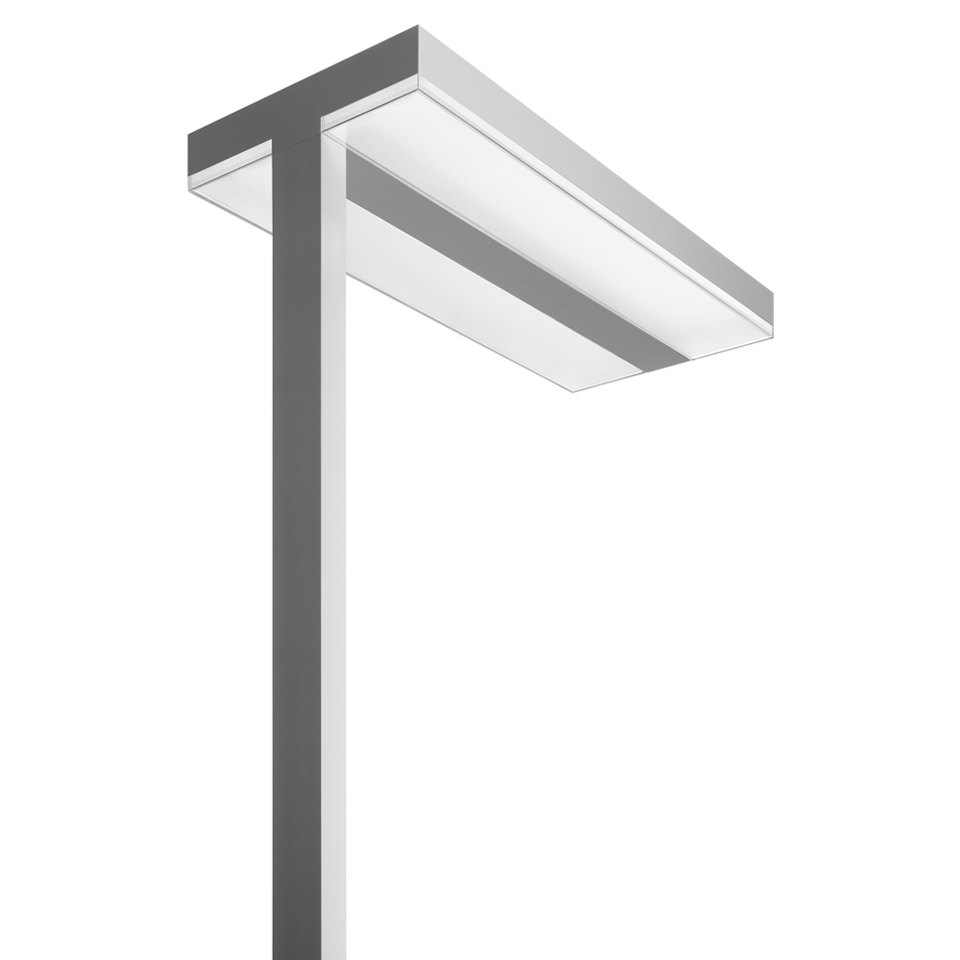

Chocolate Floor - Eco Comfort 3000K Interactive-Dali - White

IP20

Downloadable files

2D Model
  • Chocolate Terra.dwg
  • Chocolate Terra.dxf
3D Model
  • Chocolate_2_Desks.3ds
  • Chocolate_Terra_3D.stp
Silhouette
  • Chocolate Led Terra Silhouette
Instructions
  • Y503300136F--FOGLIO ISTRUZ. CHOCOLATE FLUO-LED.pdf
DiaLux ULD File
  • M036211.uld
IES Europe
  • M0366W26.IES
IES USA
  • M0366W26.IES
LDT File
  • M0366W26.LDT
LDT PDF
  • M0366W26.PDF
FEATURES
  • Product Code: M0366W26
  • Colour: White
  • Installation: Floor
  • Material: Aluminium and Steel
  • Series: Architectural Indoor
  • Environment: Indoor
  • Area contract: Office
  • Emission: Direct/indirect
  • design by: a.g Licht
LUMINAIRE
  • Watt: 77W
  • Delivered lumen output: 7306lm
  • CCT: 3000K
  • Efficiency: 68%
  • Efficacy: 94.88lm/W
  • CRI: 90
  • Dimmer Typology: Microswitch Dimmer
DIMENSIONS
  • Length: 593 mm
  • Width: 255 mm
  • Height: 1900 mm
  • Weight: kg 14
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 77W
  • Color temperature (K): 3000K
Notes

Peer Sensor + Daylight
