Silent Field 2.0 - Direct + Indirect - 3000K - APP Compatible - Black

IP20 Dimmerable:

Downloadable files

3D Model
  • Silent Field 2.0.3ds
  • Silent Field 2.0.stp
Silhouette
  • Silent Field 2.0.jpg
Instructions
  • Acoustic Absorption Silent Field 2.0 EN.pdf
  • Acoustic Absorption Silent Field 2.0 ITA.pdf
  • Y513001038B FOGLIO ISTRUZ SILENT FIELD 2.0.pdf
3D BIM Revit
  • Artemide Silent Field 2.0.rfa
  • Artemide Silent Field 2.0_Low Version.rfa
IES Europe
  • 1013030APP.IES
IES USA
  • 1013030APP.IES
LDT File
  • 1013030APP.LDT
LDT PDF
  • 1013030APP.PDF
Other
  • Sound-Absorption-Test-Silent-Field-2.0-EN.pdf
  • Test-Fono-assorbenza-Silent-Field-2.0-IT.pdf
FEATURES
  • Product Code: 1013030APP
  • Colour: Black
  • Installation: Suspension
  • Series: Design Collection, Architectural Indoor
  • Environment: Indoor
  • design by: Carlotta de Bevilacqua, Laura Pessoni
LUMINAIRE
  • Watt: 75W
  • Delivered lumen output: 5276lm
  • CCT: 3000K
  • Efficiency: 75%
  • Efficacy: 70.35lm/W
  • CRI: 90
  • Dimmable Typology: Push

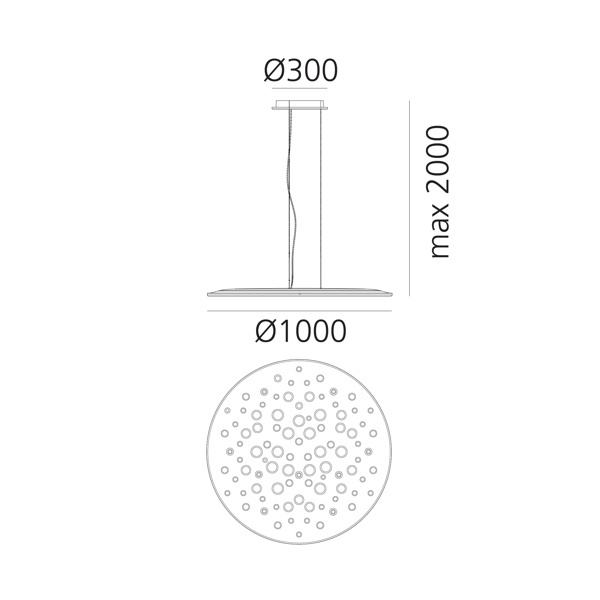

DIMENSIONS
  • Diameter: 1000 mm
  • Base Diameter: 300 mm
  • Max Height from ceiling: 2000 mm
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 37W
  • Color temperature (K): 3000K
  • Category: Led
  • Number: 1
  • Watt: 35W
  • Color temperature (K): 3000K
Notes

Dimmable: Push & APP

Accessories
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
Download all Data sheet PDF
