Tolomeo Paralume Outdoor Floor - Body Lamp

IP44

Downloadable files

3D Model
  • Tolomeo Outdoor Paralume Floor_3D.3ds
  • Tolomeo Outdoor Paralume Floor_3D.stp
Silhouette
  • Tolomeo_Paralume_Floor
Instructions
  • Y513001593B FOGLIO ISTRUZ TOLOMEO PARALUME OUTDOOR TERRA.pdf
IES Europe
  • T076150+T077330.IES
  • T076150+T077340.IES
  • T076150+T077350.IES
IES USA
  • T076150+T077330.IES
  • T076150+T077340.IES
  • T076150+T077350.IES
LDT File
  • T076150+T077330.LDT
  • T076150+T077340.LDT
  • T076150+T077350.LDT
LDT PDF
  • T076150+T077330.PDF
  • T076150+T077340.PDF
  • T076150+T077350.PDF
FUNKTIONEN
  • Produktcode: T076150
  • Farbe: Alluminium
  • Installation: Stehleuchte
  • Material: Aluminum, steel
  • Serie: Architectural Outdoor
  • Anwendungsbereich: Außenbeleuchtung
  • Lichtverteilung: Direct
  • design: Michele De Lucchi, Giancarlo Fassina
LUMINAIRE
  • Watt: 20W
  • Lichtstrom (lm): 858-1673lm
  • CCT: 3000K
  • Efficiency: 74%
  • Efficacy: 83.63lm/W
  • CRI: 90

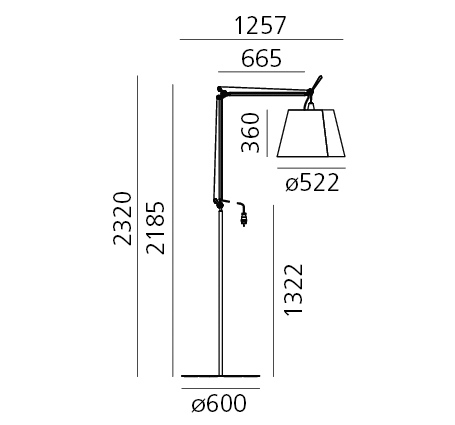

DIMENSION
  • Durchmesser: 520 mm
  • Durchmesser Fuß: 600 mm
  • Max Erweiterungslänge: 23 mm
INKLUSIVE LICHTQUELLEN
  • Kategorie: Led
  • Anzahl: 1
  • Farbtemperatur(K): 3000K
Anmerkungen

Complete lamp consists of body lamp + accessories

ZUBEHÖR
TOLOMEO OUTDOOR DIFF. 520 SPUN WHITE
T077330
TOLOMEO OUTDOOR DIFF.520 WEAVE DOVE GREY
T077340
TOLOMEO PARALUME OUTDOOR FLOOR - base+asta
T076300
TOLOMEO OUTDOOR DIFF. 520 TRAMATOWEAVE BLACK
T077350
Alle herunterladen Datenblatt PDF
