Vector Track 55 - 22° 4000K Undimmable Brushed Copper

IP20

Downloadable files

3D Model
  • Vector 55 Track.3ds
  • Vector 55 Track.stp

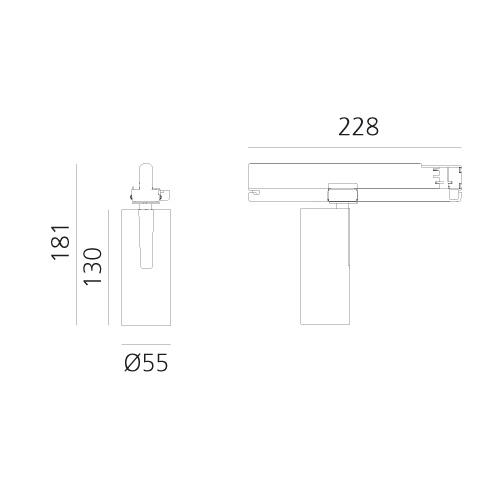

Silhouette
  • Vector_Track 55_Undimmable_silhouette.jpg
Instructions
  • Y513000880E F_IS VECTOR 40-55 TRIFASE.pdf
  • Y513001171E F_IS VECTOR 40-55 TRACK THREEPHASE+BLL.pdf
3D BIM Revit
  • Artemide Vector Track EN.zip
  • Artemide Vector Track EN_Low Version.zip
DiaLux ULD File
  • AN15201.uld
IES Europe
  • AN15218+AP91200.IES
  • AN15218+AP91300.IES
  • AN15218+AP91400.IES
  • AN15218.IES
IES USA
  • AN15218+AP91200.IES
  • AN15218+AP91300.IES
  • AN15218+AP91400.IES
  • AN15218.IES
LDT File
  • AN15218+AP91200.LDT
  • AN15218+AP91300.LDT
  • AN15218+AP91400.LDT
  • AN15218.LDT
LDT PDF
  • AN15218+AP91200.PDF
  • AN15218+AP91300.PDF
  • AN15218+AP91400.PDF
  • AN15218.PDF
FUNKTIONEN
  • Produktcode: AN15218
  • Farbe: Brushed Copper
  • Installation: Projector, Stromschiene
  • Serie: Architectural Indoor
  • Anwendungsbereich: Innenbeleuchtung
  • design: Carlotta de Bevilacqua
LUMINAIRE
  • Watt: 25W
  • Lichtstrom (lm): 1748lm
  • CCT: 4000K
  • Efficiency: 73%
  • Efficacy: 69.94lm/W
  • CRI: 90
DIMENSION
  • Höhe: 181 mm
  • Durchmesser: 55 mm
  • Länge Fuß: 162 mm
  • Neigung: -90+90
  • Drehung: 360°
INKLUSIVE LICHTQUELLEN
  • Kategorie: Led
  • Anzahl: 1
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L70 (9K) = 50000h
Anmerkungen

220/240Vac 50/60Hz electronic ballast included.
Louvre to be ordered separately.

The compatibility may become invalid when the critical track dimension is modified by the brand owner in case of engineering change or optimization in the future.

ZUBEHÖR
Accessories holder - Vector 55
AP91100
Lens for elliptical emission - Vector 55
AP91200
Soft filter - Vector 55
AP91300
Anti-dazzle louvre - Vector 55
AP91400
Adjustable dowsers - Vector 55
AP91500
