A.39 Suspension/Ceiling - 90° Corner (same plane) 3000K DALI Silver

IP20 Dimmbar:

Downloadable files

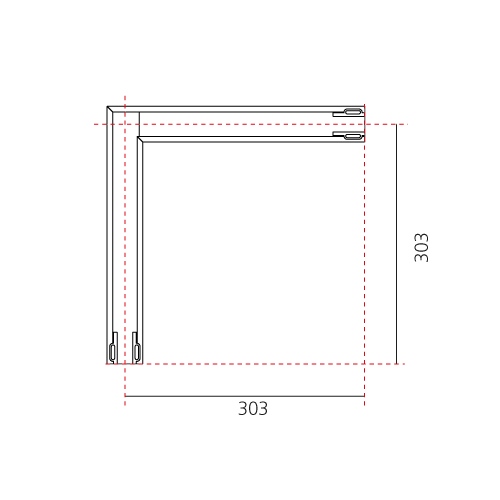

Silhouette
  • A.39-angle-90.jpg
Instructions
  • Y513001960 F_IS A39 SUSPENSION CEILING NEW.pdf
3D BIM Revit
  • A.39 Diffused Emission Ceiling Suspension EN.zip
  • A.39 Diffused Emission Ceiling Suspension EN_Low Version.zip
IES Europe
  • AT35005.IES
IES USA
  • AT35005.IES
LDT File
  • AT35005.LDT
LDT PDF
  • AT35005.PDF
FUNKTIONEN
  • Produktcode: AT35005
  • Farbe: Silver
  • Installation: Pendelleuchte, Deckenleuchte
  • Serie: Architectural Indoor
  • Anwendungsbereich: Innenbeleuchtung
  • design: Carlotta de Bevilacqua
LUMINAIRE
  • Watt: 10W
  • Lichtstrom (lm): 899lm
  • CCT: 3000K
  • Efficiency: 56%
  • Efficacy: 89.90lm/W
  • CRI: 90
  • Dimmable Typology: Dali
DIMENSION
  • Länge: 303 mm
  • Breite: 303 mm
Anmerkungen

Opal diffuser supplied separately.
APP interface supplied separately.
The APP driver can not be controlled dimming system and viceversa.
Uses 1 DALI address.

ZUBEHÖR
A.39 - Mechanical joint including 1 suspension cable
AT09500
Remote BLL interface for Artemide App to manage dimmable ceiling modules (up to 40 addresses)
DV1054APP
A.39 - Dimmable APP Feeding kit including 2 suspension cables (5 poles) 2000m (H)
AT10500APP
A.39 - Dimmable Feeding kit including 2 suspension cables (5 poles) 2000m (H)
AT10500
