Alphabet of light system - Wall/Ceiling/Suspension - Vertical - Down - 3500K - Not Powered

IP20 Dimmbar:
2D Model
  • 2125C10A - AOL SYSTEM S CURVA DOWN 3500K.dxf
  • AOL SYSTEM JOINT.dxf
3D Model
  • AoL-System-Curve-DOWN.3ds
  • AoL-System-Curve-DOWN.stp
  • Example Configuration.3ds
  • Example Configuration.stp
  • Accessories-AoL-Suspension.zip
  • Accessories-AoL-Wall/Ceiling.zip

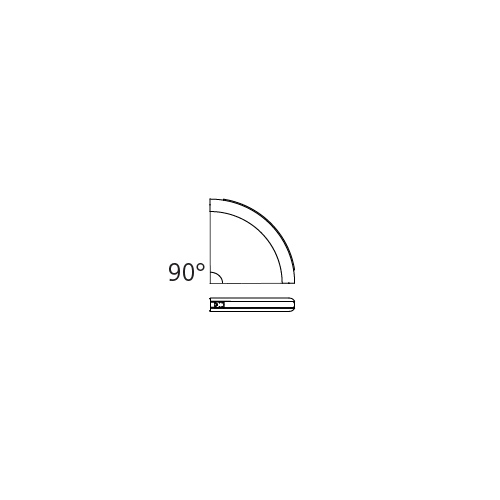

Silhouette
  • AoL-DOWN.jpg
Instructions
  • Y513001294--Foglio istr. A.o.l. cavo alim. 6mt.pdf
  • Y513001158B FOGLIO ISTR. AOL SYS SR_II.pdf
  • Y513001222B-FOGLIO ISTR. AOL SYS DRV SOSP SR.pdf
  • Y513001160A FOGLIO ISTR. AOL SYS FIN.0 - App.pdf
  • Y513001156A FOGLIO ISTR. AOL SYS FIN.0.pdf
  • Y513001517 FOGLIO ISTR AOL SYS DRV S SR 0-10V EUROP.PDF
  • Y513001161A FOGLIO ISTR. AOL SYS SR - DRV.pdf
  • Y513001664 FOGLIO ISTRUZ GIUNTI AOL T - X.pdf
3D BIM Revit
  • Artemide AoL System EN.zip
IES Europe
  • 2125C10A.IES
IES USA
  • 2125C10A.IES
LDT File
  • 2125C10A.LDT
LDT PDF
  • 2125C10A.PDF
FUNKTIONEN
  • Artikelnummer: 2125C10A
  • Farbe: White
  • Installation: DeckenleuchtePendelleuchteWandleuchte
  • Material: Halterung aus Aluminium, diffusionselement aus opalenem technopolymer.
  • Serie: Design Collection, Architectural Indoor
  • Anwendungsbereich: Innenbeleuchtung
  • design: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 8W
  • Lichtstrom (lm): 621lm
  • CCT: 3500K
  • Efficiency: 68%
  • Efficacy: 77.64lm/W
  • CRI: 80
  • Dimmable Typology: APP,Push/DALI
INKLUSIVE LICHTQUELLEN
  • Kategorie: Led
  • Anzahl: 1
  • Watt: 8W
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L80 (12K) 72000h
Anmerkungen

Max 10 m for each power unit (10 m in one direction or 5 m in both directions). Ceiling rose with power supply for each group. (depending on the power supply chosen, the product could be APP Compatible). DALI dimming possible for the entire system or for groups of modules powered by the same driver.

ZUBEHÖR

Legend

→ left to right path
← right to left path

Lengthening - Length 1.25 meters
2274010A
Lengthening - Length 2.50 meters
2275010A
Joint N°14 (→ L to R) Linear - 90° vertical up (← R to L) 90° vertical up - linear
2264010A
Joint N°13 (→ L to R) 90° down - 90° up (← R to L) 90° up - 90° down
2263010A
Suspension Kit - Length 1.5 meters
2266010A
Suspension Kit - Length 4 meters
2273010A
