La linea 25 - 20mt

IP65 Dimmbar:

Downloadable files

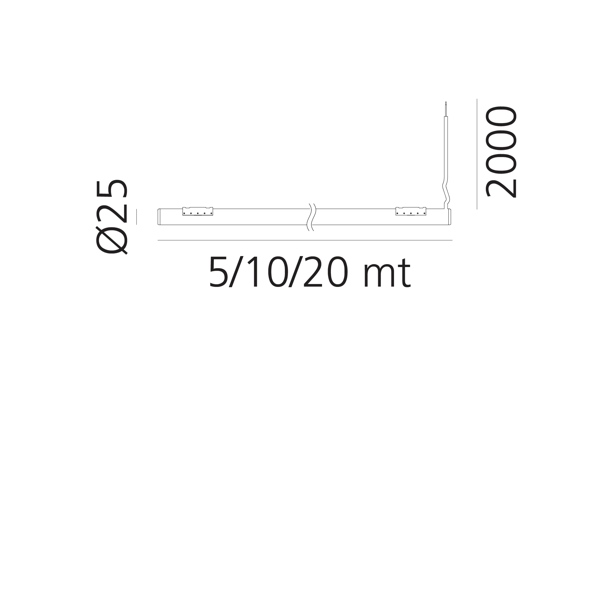

Silhouette
  • La Linea 25.jpg
Instructions
  • Y513001710B F_IS LA LINEA 25.pdf
IES Europe
  • T4622010.IES
  • T4622010_1000mm.IES
  • T4622010_500mm.IES
IES USA
  • T4622010.IES
  • T4622010_1000mm.IES
  • T4622010_500mm.IES
LDT File
  • T4622010.LDT
  • T4622010_1000mm.LDT
  • T4622010_500mm.LDT
LDT PDF
  • T4622010.PDF
  • T4622010_1000MM.PDF
  • T4622010_500MM.PDF
FUNKTIONEN
  • Produktcode: T4622010
  • Farbe: White
  • Installation: Deckenleuchte, Wandleuchte
  • Material: High diffusion optical silicone lamp body. Transparent technopolymer wall mounts.
  • Serie: Design Collection, Architectural Outdoor
  • design: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 12,5W/m
  • Lichtstrom (lm): 950 lm/m
  • CCT: 3000K
  • CRI: 90
  • Dimmable Typology: APP,Push,Dali
DIMENSION
  • Länge: 20000 mm
  • Durchmesser: 25 mm
Anmerkungen

Weight 0,7 kg/m

ZUBEHÖR
Remote Driver - 320W - 90-305Vac - 250x68x40 (LxWxH) - On-Off - IP65
DV1107
Remote Driver - 320W - 90-305Vac - 250x68x40 (LxWxH) - Push & APP - IP20
DV1107APP
Remote Driver - 320W - 100-240Vac - 250x68x40 (LxWxH) - DALI - IP65
DV1108
