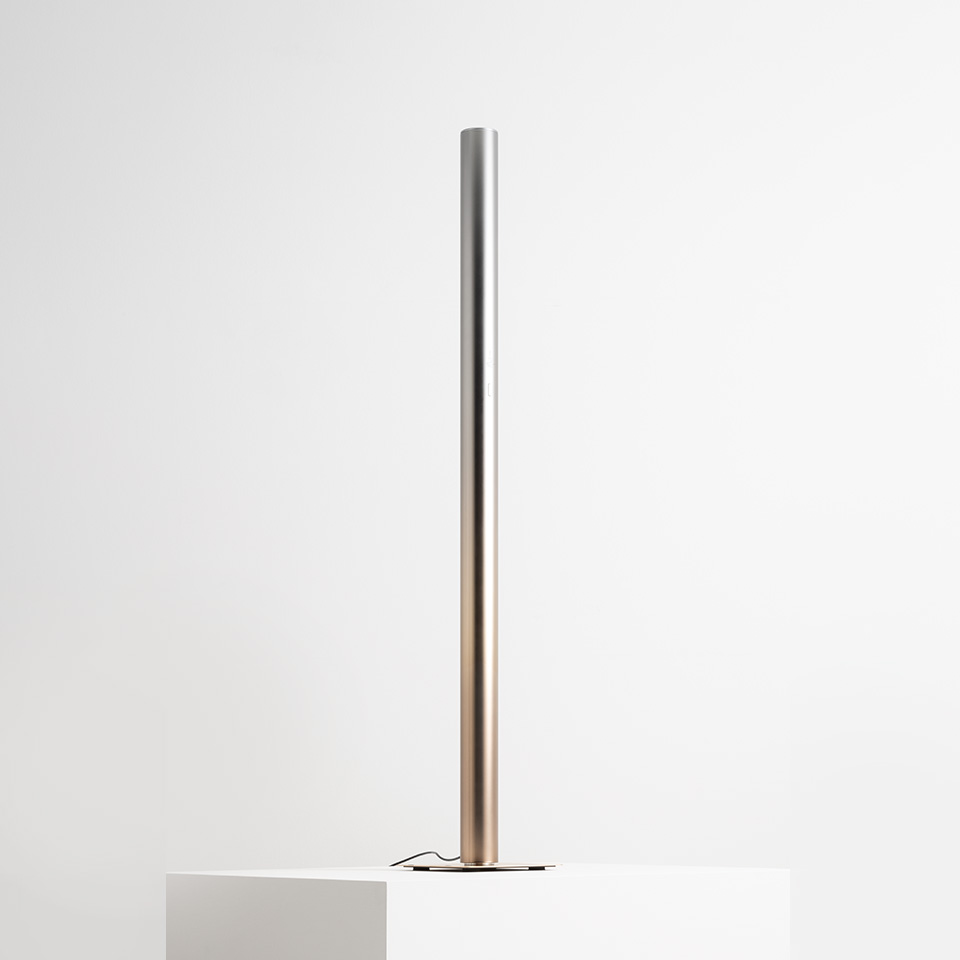

Ilio 10 Special Edition - 2700K - App Compatible

IP20

Downloadable files

2D Model
  • Ilio_2D.dxf
  • Ilio_2D.dwg
3D Model
  • Ilio_3D.stp
  • Ilio_3D.3ds
Silhouette
  • Ilio_Silhouette
Instructions
  • Y513001086C F_IS ILIO APP EU-USA.pdf
  • Y513001035A-Artemide APP.pdf
FUNKTIONEN
  • Produktcode: 1640W00APP
  • Farbe: Gold/Silver
  • Installation: Stehleuchte
  • Material: Aluminium, steel
  • Serie: Design Collection
  • design: Ernesto Gismondi
LUMINAIRE
  • Watt: 45W
  • Spannung (V): 220-240V
  • Lichtstrom (lm): 3332lm
  • CCT: 2700K
  • Efficiency: 87%
  • Efficacy: 74.04lm/W
  • CRI: 90

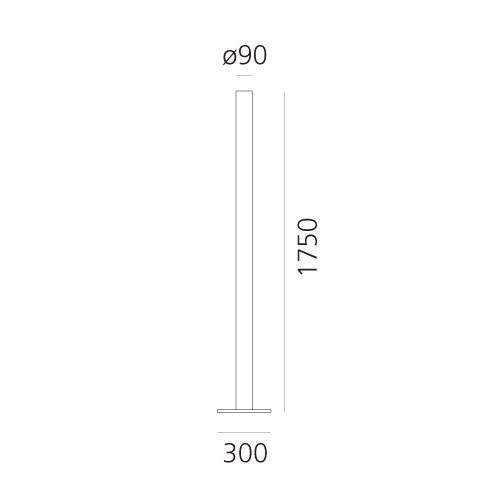

DIMENSION
  • Höhe: 1750 mm
  • Durchmesser: 90 mm
  • Länge Fuß: 300 mm
  • Breite Fuß: 300 mm
  • Widerstand: N.D.
  • Glühdrahttest: 750°
INKLUSIVE LICHTQUELLEN
  • Kategorie: Led
  • Anzahl: 1
  • Watt: 36.36W
  • Lichtstrom (lm): 3646lm
  • Farbtemperatur(K): 2700K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
  • Efficacy: 100lm/W
  • Service Life: 50000-L70
Anmerkungen

ZUBEHÖR
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
