Rea 17

IP20

Downloadable files

2D Model
  • Rea 17.dwg
  • Rea_17_2D.dxf
3D Model
  • Rea_3D.3ds
  • Rea_3D.stp
Silhouette
  • Rea17_SIL.jpg
Instructions
  • Istruzioni_montaggio
IES Europe
  • 1615010A.IES
IES USA
  • 1615010A.IES
LDT File
  • 1615010A.LDT
LDT PDF
  • 1615010A.PDF
FEATURES
  • Product Code: 1615010A
  • Colour: White
  • Installation: Wall
  • Material: Aluminium
  • Series: Design Collection
  • Environment: Indoor
  • design by: Neil Poulton
LUMINAIRE
  • Watt: 20W
  • Delivered lumen output: 2193lm
  • CCT: 3000K
  • Efficiency: 100%
  • Efficacy: 109.65lm/W
  • CRI: 92

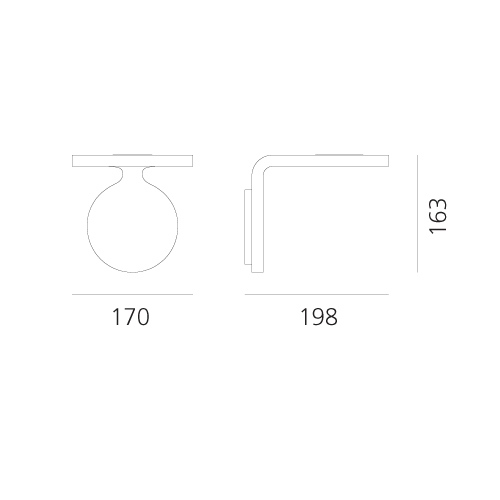

DIMENSIONS
  • Length: 170 mm
  • Width: 198 mm
  • Height: 163 mm
  • Glow Wire Test: 850°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 20W
  • Delivered lumen output: 1950lm
  • Color temperature (K): 3000K
  • CRI: 80
  • Efficacy: 98lm/W
Download all Data sheet PDF
