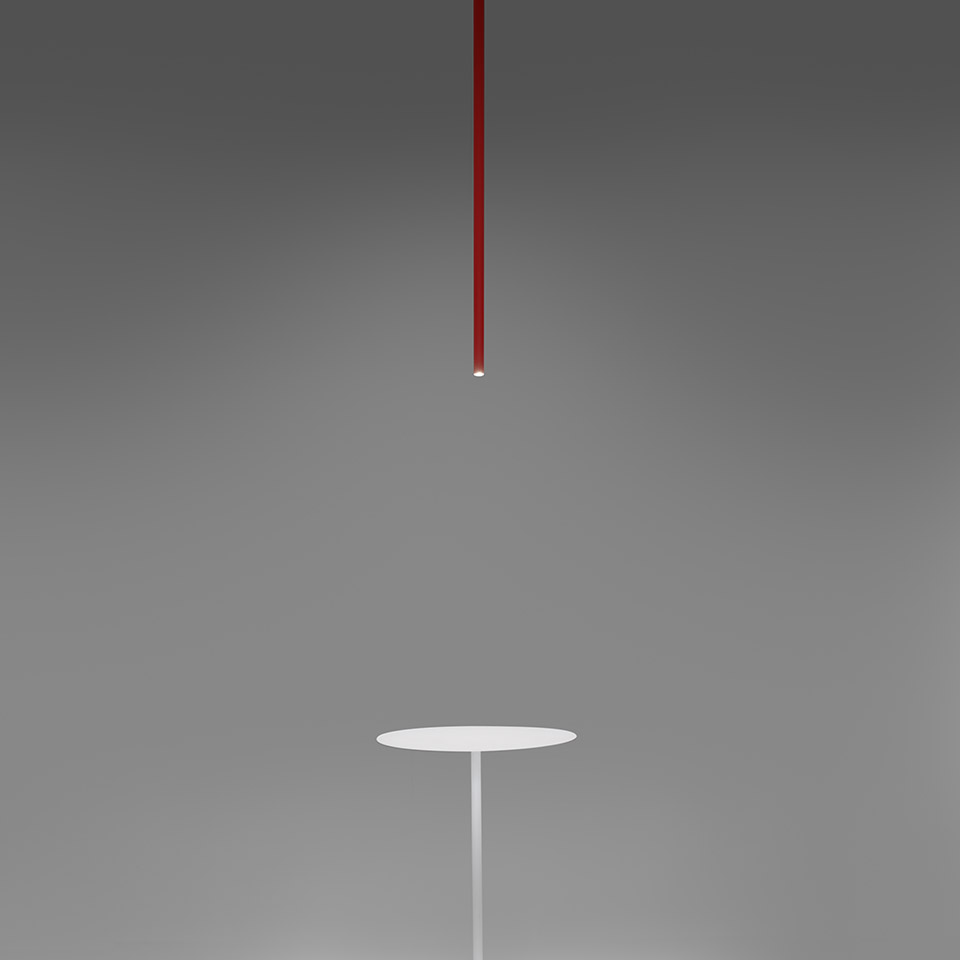

Iosif

Downloadable files

2D Model
  • Iosif_2D.dwg
  • Iosif_2D.dxf
3D Model
  • Iosif_3D.3ds
  • Iosif_3D.stp
Silhouette
  • Iosif_Silhouette
Instructions
  • y513000318 iosif incasso.pdf
IES Europe
  • 1650010A.IES
IES USA
  • 1650010A.IES
LDT File
  • 1650010A.LDT
LDT PDF
  • 1650010A.PDF
FEATURES
  • Product Code: 1650010A
  • Colour: Red
  • Installation: Ceiling
  • Material: Aluminium
  • Series: Scenarios
  • design by: Milodamalo
LUMINAIRE
  • Watt: 4.5W
  • Delivered lumen output: 207lm
  • CCT: 3000K
  • Efficiency: 67%
  • Efficacy: 46lm/W
  • CRI: 93

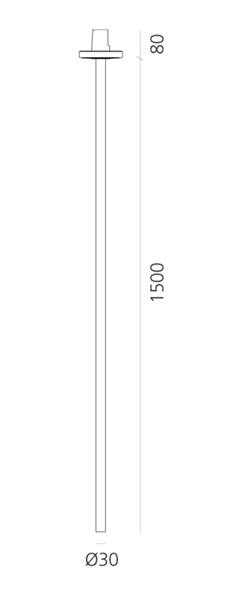

DIMENSIONS
  • Height: 1500 mm
  • Diameter: 30 mm
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 3W
  • Delivered lumen output: 310lm
  • Color temperature (K): 3000K
  • Efficacy: 46lm/W
Download all Data sheet PDF
