Tolomeo Braccio

IP20

Downloadable files

Silhouette
  • Tolomeo_Braccio.jpg
Instructions
  • Y513000482B F_IS TOLOMEO FARETTO E27.pdf
IES Europe
  • A029050.IES
IES USA
  • A029050.IES
LDT File
  • A029050.LDT
LDT PDF
  • A029050.PDF
FEATURES
  • Product Code: A029050
  • Colour: Aluminum
  • Installation: Wall
  • Material: Aluminium
  • Series: Design Collection
  • design by: Michele De Lucchi, Giancarlo Fassina
LUMINAIRE *
  • Watt: 8W
  • Voltage: 220V-240V
  • Delivered lumen output: 615lm
  • CCT: 2700K
  • Efficiency: 58%
  • Efficacy: 76.87lm/W
  • CRI: 90

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

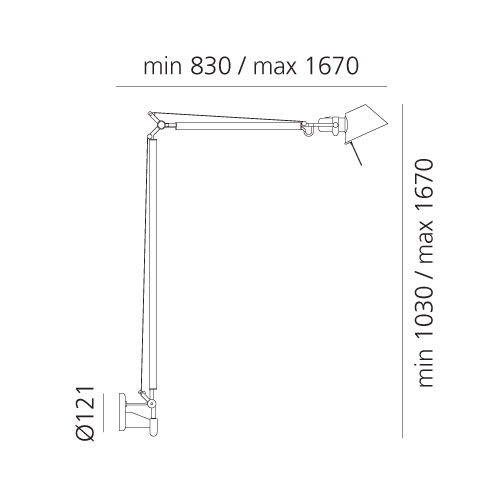

DIMENSIONS
  • Length: 830 mm
  • Height: 1030 mm
  • Max Extension Height: 1670 mm
  • Max Extension Length: 1670 mm
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 12W
  • Socket: E27
Notes

Possibility to mount LED source on E27 Socket

Download all Data sheet PDF
