Tolomeo Wall Diffusor 24 - Body Lamp

IP20 Dimmerable:

Downloadable files

2D Model
  • Tolomeo_parete_Diff_24.dwg
  • Tolomeo_parete_Diff_24.dxf
3D Model
  • Tolomeo Parete Diffusore 24_3D.3ds
  • Tolomeo Parete Diffusore 24_3D.stp
Silhouette
  • Tolomeo_parete_Diff_24.jpg
Instructions
  • Y513001193A F_IS TOLOMEO PARETE DIFFUSORE 180-240-320.pdf
IES Europe
  • 1184010A+0372050A.IES
IES USA
  • 1184010A+0372050A.IES
LDT File
  • 1184010A+0372050A.LDT
LDT PDF
  • 1184010A+0372050A.PDF
FEATURES
  • Product Code: 1184010A
  • Colour: Alluminium
  • Installation: Wall
  • Material: Aluminium, parchment paper or satin
  • Series: Design Collection
  • design by: Michele De Lucchi, Giancarlo Fassina
LUMINAIRE *
  • Watt: 17W
  • Voltage: 220V-240V
  • Delivered lumen output: 1712lm
  • Efficiency: 86%
  • Efficacy: 100.72lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

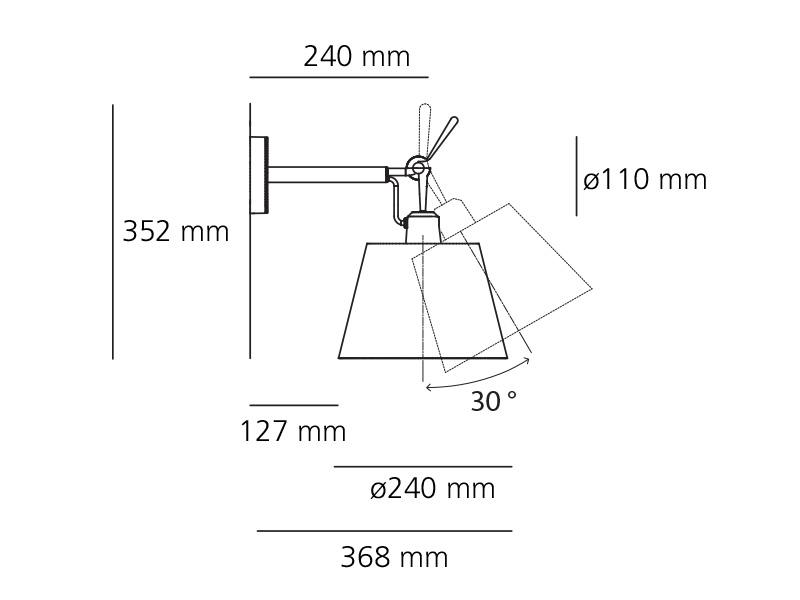

DIMENSIONS
  • Length: 368 mm
  • Height: 352 mm
  • Diameter: 240 mm
  • Base Diameter: 110 mm
  • Rotation: 30°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 17W
  • Socket: E27
Notes

Possibility to mount LED source on E27 Socket. Complete lamp consists of body lamp + accessories

Accessories
Parchment paper diffuser ø 240 mm
0372050A
Silk diffuser ø 240 mm
0781050A
