Tolomeo Reading Floor - Black - Body Lamp

IP20
2D Model
  • Tolomeo Reading Floor.dwg
  • Tolomeo Reading Floor.dxf
3D Model
  • Tolomeo_lettura_3D.3ds
  • Tolomeo_lettura_3D.stp
Silhouette
  • Tolomeo_Lettura
Instructions
  • Y513000585 Tolomeo Lettura.pdf
IES Europe
  • A013930.IES
IES USA
  • A013930.IES
LDT File
  • A013930.LDT
LDT PDF
  • A013930.PDF
FEATURES
  • Article Code: A013930
  • Colour: Black
  • Installation: Floor
  • Material: Aluminium, steel
  • Series: Design Collection
  • design by: Michele De Lucchi, Giancarlo Fassina
LUMINAIRE
  • Watt: 10,5W
  • Voltage: 220V-240V
  • Delivered lumens output: 615lm
  • Efficiency: 58%
  • Efficacy: 61.49lm/W
  • CRI: 80

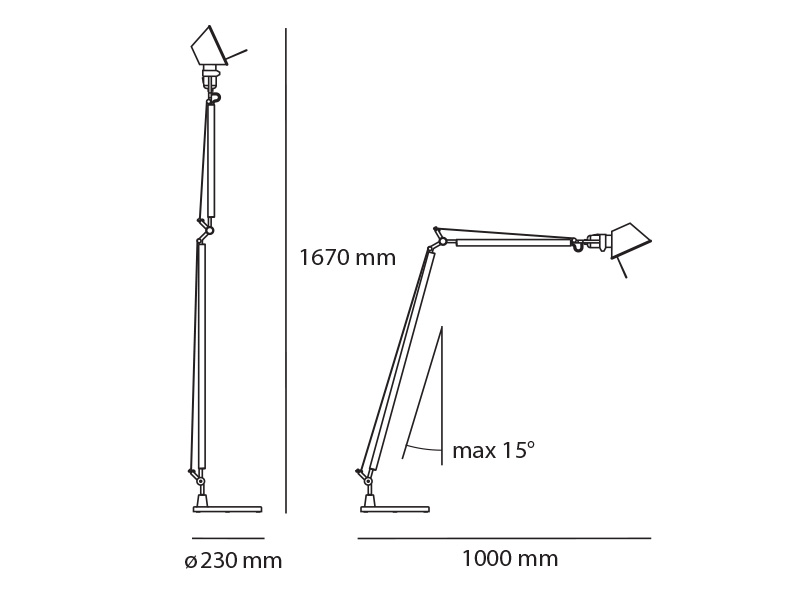

DIMENSIONS
  • Base Diameter: cm 23
  • Max Extension Height: cm 167
  • Max Extension Length: cm 100
  • Glow Wire Test: N/D°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: 8W
  • Socket: E27
Notes

Possibility to mount LED source on E27 Socket. Complete lamp consists of body lamp + accessories

Accessories
Base Black
A014930
Download all Product PDF
