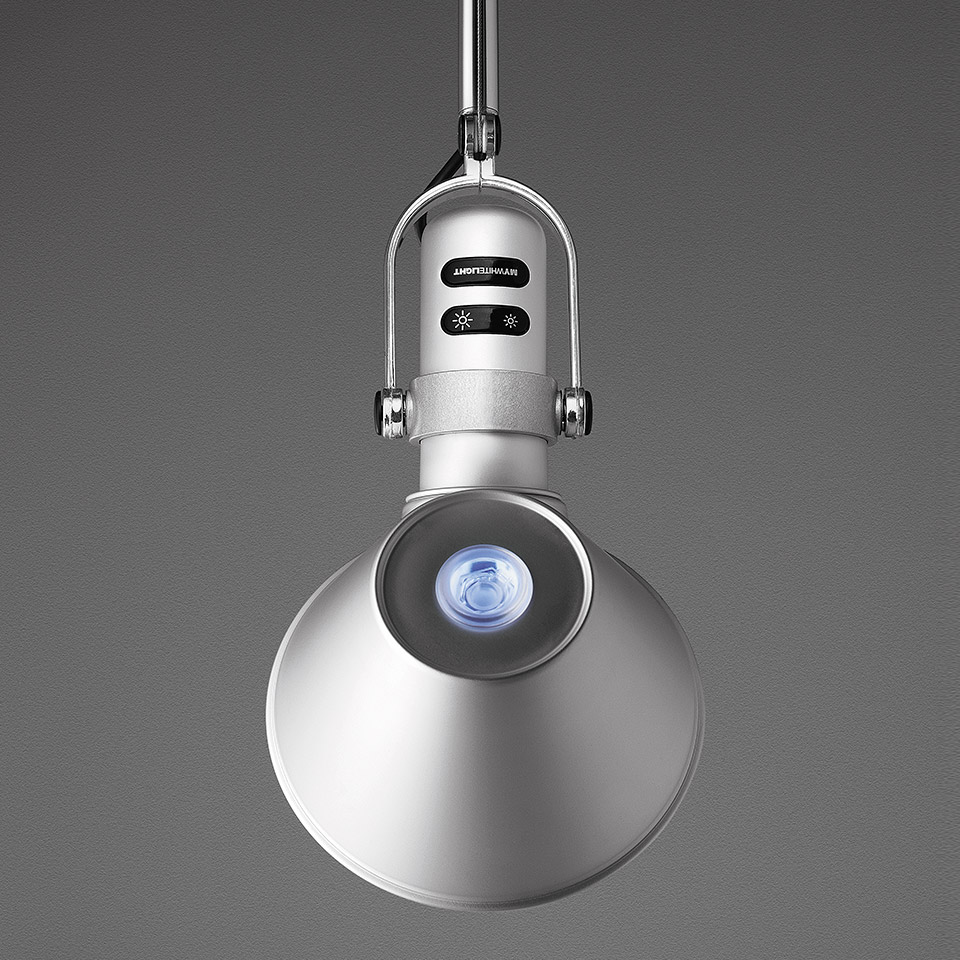

Tolomeo table LED TW - Body Lamp

IP20

Downloadable files

2D Model
  • Tolomeo_tavolo.dwg
  • Tolomeo_tavolo.dxf
3D Model
  • Tolomeo_tavolo.3ds
  • Tolomeo_tavolo.stp
Silhouette
  • Tolomeo_tavolo.jpg
Instructions
  • Y513000312D F_IS TOLOMEO LED TW - TOLOMEO MINI LED TW.pdf
IES Europe
  • 1530050A_N.IES
  • 1530050A_W.IES
IES USA
  • 1530050A_N.IES
  • 1530050A_W.IES
LDT File
  • 1530050A_N.LDT
  • 1530050A_W.LDT
LDT PDF
  • 1530050A_N.PDF
  • 1530050A_W.PDF
FEATURES
  • Product Code: 1530050A
  • Colour: Aluminium
  • Installation: Table
  • Material: aluminium, steel
  • Series: Design Collection
  • design by: Michele De Lucchi, Giancarlo Fassina
LUMINAIRE
  • Watt: 11W
  • Voltage: 24V
  • Delivered lumen output: 560 - 716lm
  • CCT: 2200-6500K
  • Efficiency: 70%
  • Efficacy: 65.10lm/W
  • CRI: 90
  • Dimmer Typology: Microswitch Dimmer
DIMENSIONS
  • Length: 780 mm
  • Height: 645 mm
  • Base Diameter: 230 mm
  • Max Extension Height: 1290 mm
  • Max Extension Length: 1220 mm
  • Glow Wire Test: 750°
SOURCES INCLUDED
  • Category: Led TW
  • Number: 1
  • Color temperature (K): 2200-6500K
AWARDS

1989 Compasso d’Oro / A.D.I. Milano (Italia) 1987 SNAI Oscar des Architectes d’Intérieur Paris (France) 1987 Haus Industrieform Deutschland

Notes

Interchangeable support: table base, clamp, desk fixed support and twin support that allows two indipendent lamp units to be fitted. Complete lamp consists of body lamp + accessories

Accessories
Table clamp aluminium
A004100
Table base ø cm. 23 - Aluminium
A004030
Desk fixed support aluminium
A004200
Download all Data sheet PDF
