Pirce Micro Suspension LED - 3000K - Gold

IP 20 Dimmerable:

Downloadable files

2D Model
  • Pirce Micro Sospensione_2D.dwg
  • Pirce Micro Sospensione_2D.dxf
3D Model
  • Pirce Micro Sospensione_3D.3ds
  • Pirce Micro Sospensione_3D.stp
Silhouette
  • Pirce Micro Suspension.jpg
Instructions
  • Y513000387B F_IS PIRCE MICRO LED SUSPENSION.pdf
IES Europe
  • 1249020A.IES
IES USA
  • 1249020A.IES
LDT File
  • 1249020A.LDT
LDT PDF
  • 1249020A.PDF
FEATURES
  • Product Code: 1249020A
  • Colour: Gold
  • Installation: Suspension
  • Material: Aluminum
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Residential
  • Emission: Indirect
  • design by: Giuseppe Maurizio Scutellà
LUMINAIRE
  • Watt: 27W
  • Voltage: 220V-240V
  • Delivered lumen output: 2753lm
  • CCT: 3000K
  • Efficiency: 96%
  • Efficacy: 101.96lm/W
  • CRI: 90
  • Dimmable Typology: Push

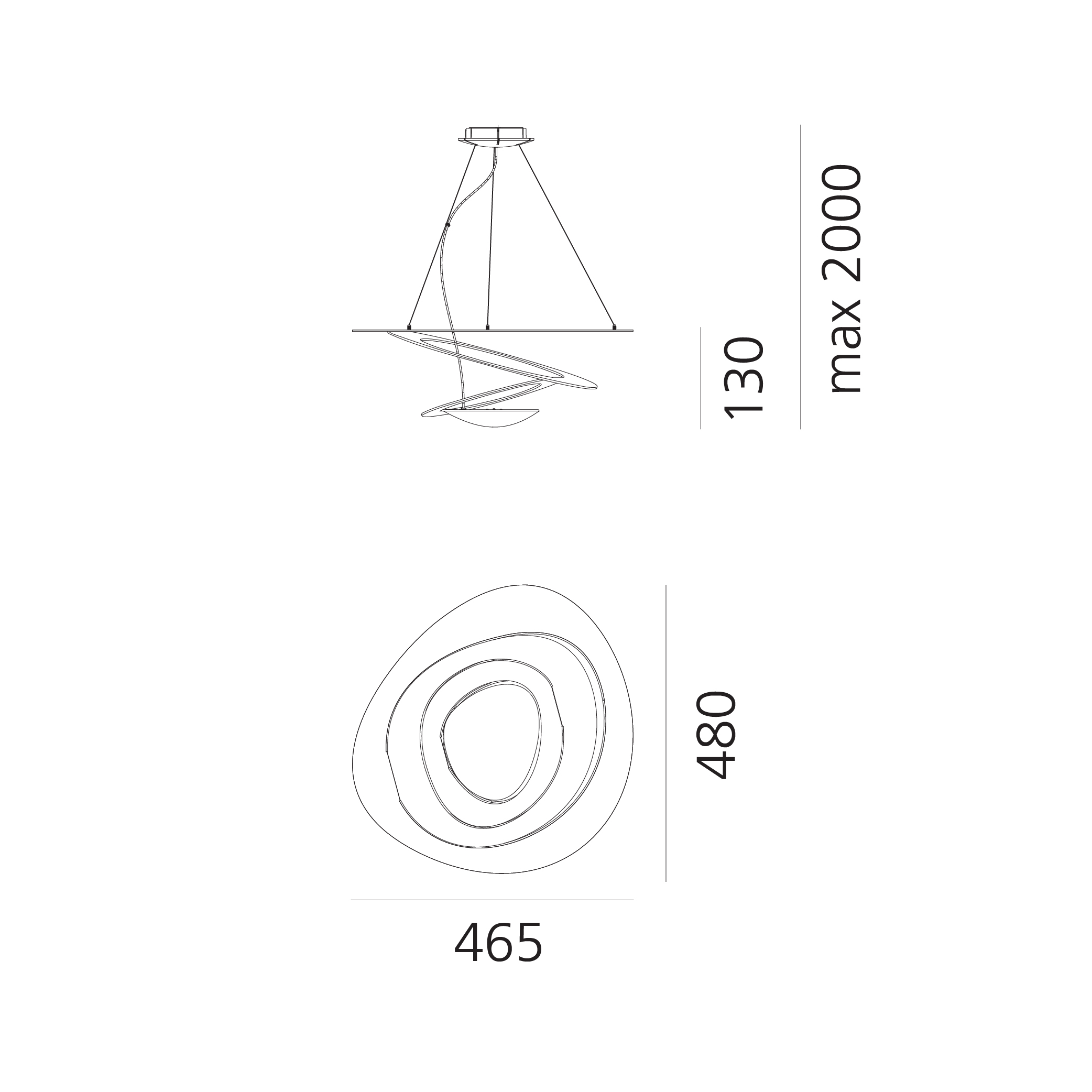

DIMENSIONS
  • Length: 465 mm
  • Width: 480 mm
  • Height: 130 mm
  • Max Height from ceiling: 2000 mm
  • Glow Wire Test: 650°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 27W
  • Delivered lumen output: 3200lm
  • Color temperature (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
Download all Data sheet PDF
