Tizio

IP20

Downloadable files

2D Model
  • Tizio_2D.dwg
  • Tizio_2D.dxf
3D Model
  • Tizio_3D.3ds
  • Tizio_3D.stp
Silhouette
  • Tizio_Silhouette
Instructions
  • Y513001687A F_IS TIZIO ON OFF NEW.pdf
IES Europe
  • A009010.IES
IES USA
  • A009010.IES
LDT File
  • A009010.LDT
LDT PDF
  • A009010.PDF
FEATURES
  • Product Code: A009010
  • Colour: Black
  • Installation: Table
  • Material: aluminium, technopolymer
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality, Office, Residential
  • Emission: Direct Adjustable
  • design by: Richard Sapper
LUMINAIRE *
  • Trasformer availability: Integrated
  • Watt: 3,3W
  • Voltage: 220V-240V
  • Delivered lumen output: 191lm
  • Efficiency: 48%
  • Efficacy: 63.67lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

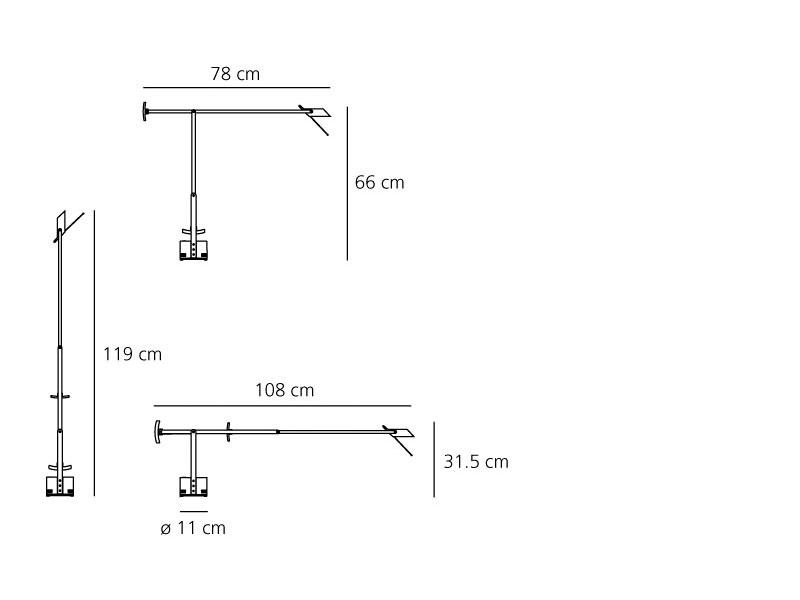

DIMENSIONS
  • Length: 780 mm
  • Height: 660 mm
  • Base Diameter: 110 mm
  • Max Extension Height: 1190 mm
  • Max Extension Length: 1080 mm
  • Inclination: -42+42
  • Impact Resistance: N/D
  • Glow Wire Test: N/D°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 2,5W
  • Socket: GY6.35
AWARDS

1979 Compasso D’Oro / A.D.I. Segnalazione - Milano (Italia) 1973 Casamica – Per l’accessorio Milano (Italia) 1981 BIO 9 – Gold Medal Ljubljana (Slovenia) 1980 Haus Industrieform Design Zentrum Nordrhein Westfalen Essen (Deutschland)

Accessories
TIZIO NERA SUPPORTO TERRA
A087700
