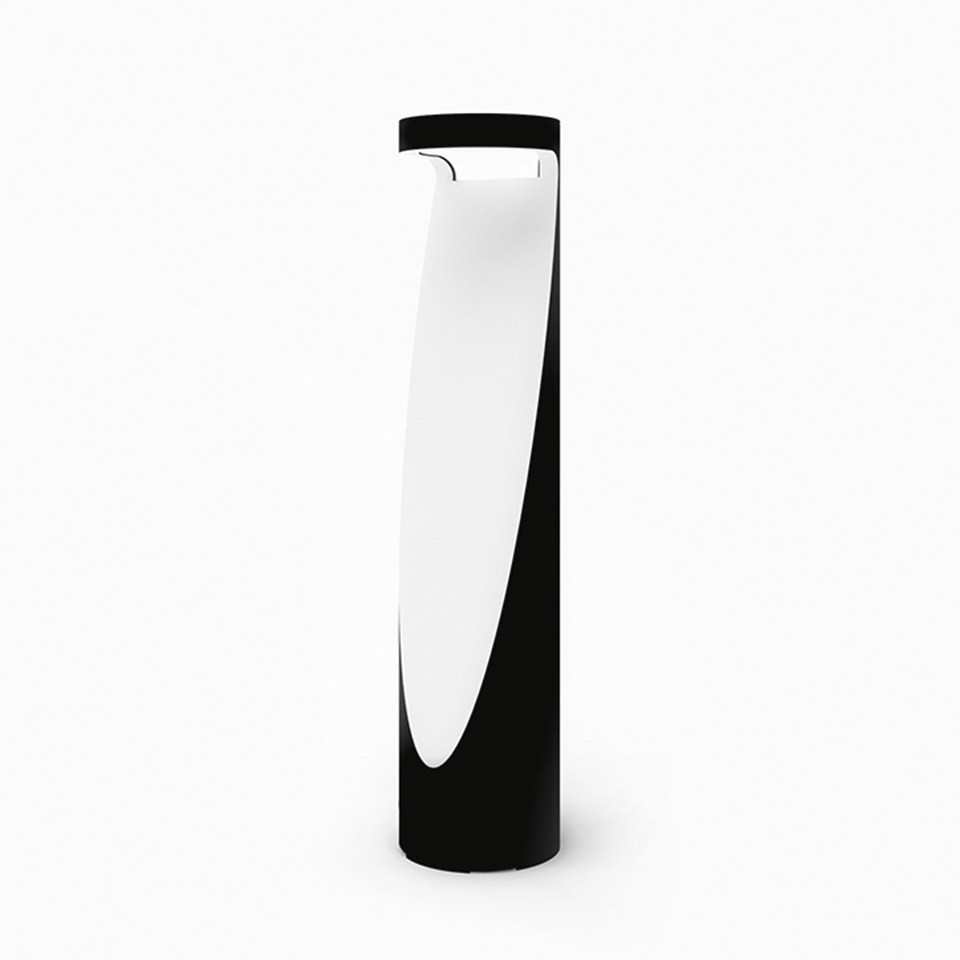

Ippolito 90

IP65
3D Model
  • Ippolito 90.3ds
  • Ippolito 90.stp
Silhouette
  • Ippolito 90.jpg
Instructions
  • y513000061A ippolito.pdf
IES Europe
  • T085000.IES
IES USA
  • T085000.IES
LDT File
  • T085000.LDT
LDT PDF
  • T085000.PDF
FEATURES
  • Product Code: T085000
  • Colour: anthracite grey/light grey
  • Installation: Floor
  • Material: Aluminum, polycarbonate, polyurethane
  • Series: Architectural Outdoor
  • design by: Alessandro Pedretti
LUMINAIRE
  • Watt: 15W
  • Delivered lumen output: 1212lm
  • CCT: 3000K
  • Efficiency: 87%
  • Efficacy: 80.80lm/W
  • CRI: 90

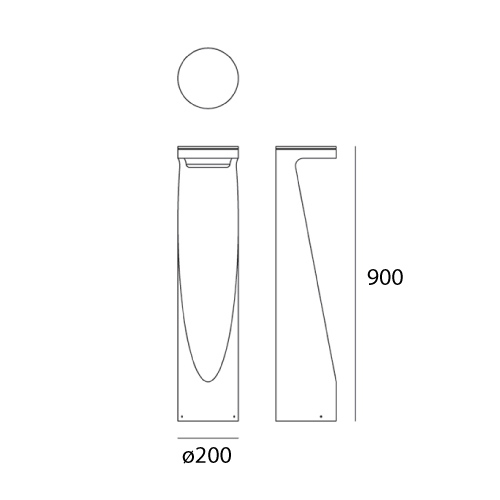

DIMENSIONS
  • Height: 900 mm
  • Diameter: 200 mm
  • Impact Resistance: IK10
  • Glow Wire Test: 650°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 15W
  • Delivered lumen output: 1290lm
  • Color temperature (K): 3000K
  • CRI: 80 typ
  • Color Tolerance: MacAdam 2SDCM
Download all Data sheet PDF
