Calumet 8 wall 2x7,8° 3000K

IP65
3D Model
  • Calumet 8 Wall Double Emission.3ds
  • Calumet 8 Wall Double Emission.stp
Silhouette
  • Calumet 8 wall
Instructions
  • Istruzioni_montaggio
DiaLux ULD File
  • T41922NW10.uld
IES Europe
  • T41922NW10.IES
IES USA
  • T41922NW10.IES
LDT File
  • T41922NW10.LDT
LDT PDF
  • T41922NW10.PDF
Other
  • T41922NW10.PDF
FEATURES
  • Article Code: T41922NW10
  • Colour: anthracite grey
  • Installation: Wall
  • Material: Aluminum, tempered glass, methacrylate
  • Series: Architectural Outdoor
  • design by: Ernesto Gismondi
LUMINAIRE
  • Watt: 7.5W
  • Voltage: 220V-240V
  • Delivered lumens output: 369lm
  • CCT: 3000K
  • Efficiency: 82%
  • Efficacy: 49.2lm/W
  • CRI: 80

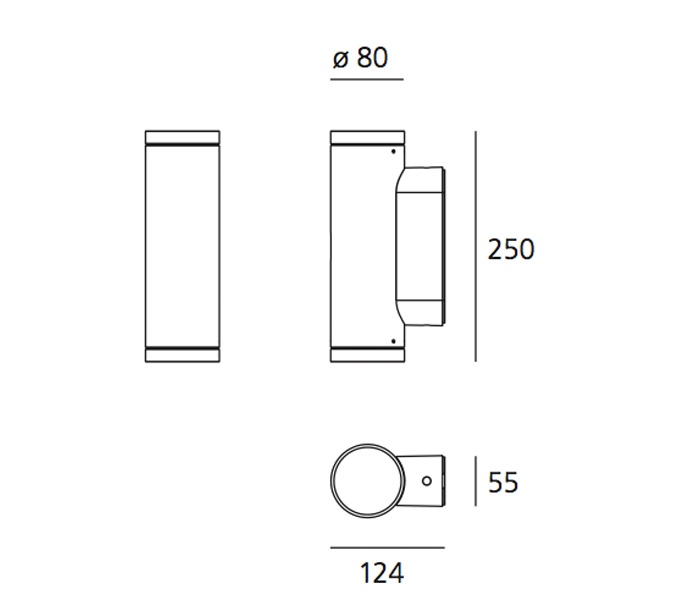

DIMENSIONS
  • Length: cm 12.4
  • Width: cm 5.5
  • Height: cm 25
  • Diameter: cm 8
  • Impact Resistance: 06
SOURCES INCLUDED
  • Category: Led
  • Number: 2
  • Watt: 4W
  • Delivered lumens output: 184lm
  • Color temperature (K): 3000K
  • CRI: 80 typ
