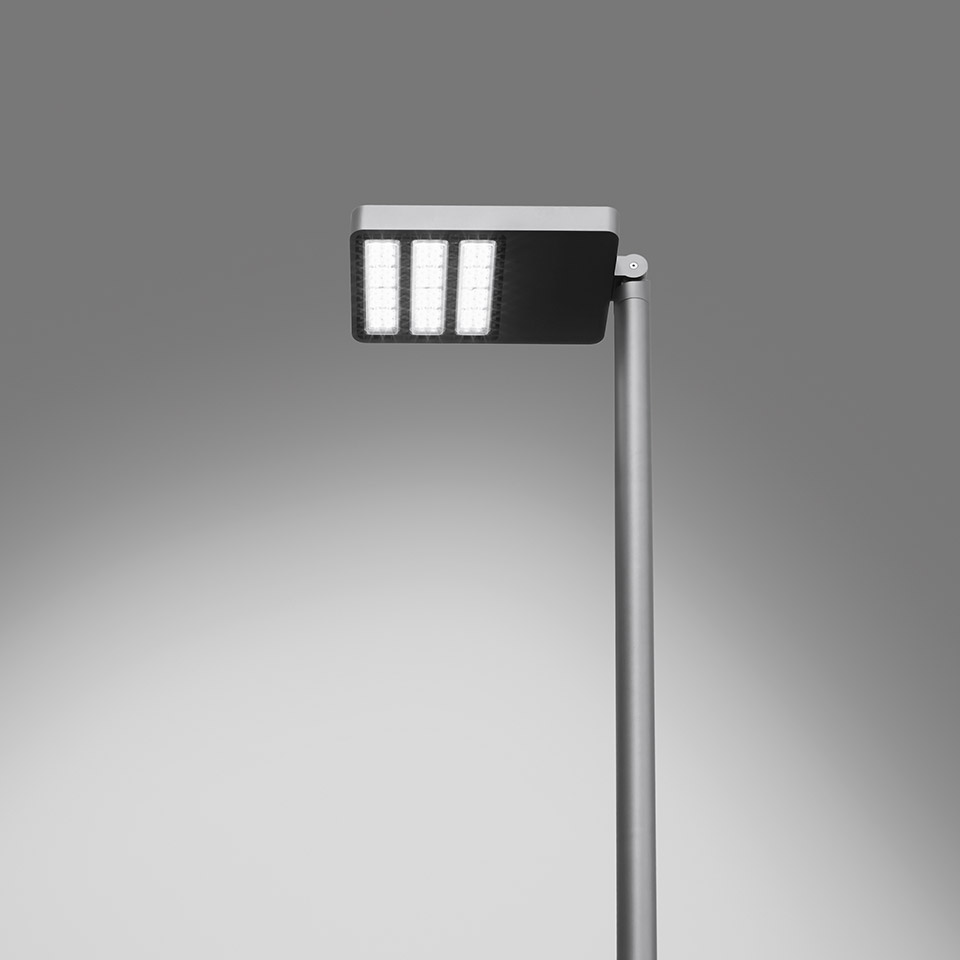

Sostituto Pole

IP65
3D Model
  • Sostituto Pole.3ds
  • Sostituto Pole.stp
Silhouette
  • Sil_Sostituto Palo
Instructions
  • Y513000227C Sostituto_Palo.pdf
DiaLux ULD File
  • T4183ELN00_H.uld
  • T4183ELN00_V.uld
IES Europe
  • T4183ELN00.IES
IES USA
  • T4183ELN00.IES
LDT File
  • T4183ELN00.LDT
LDT PDF
  • T4183ELN00.pdf
FEATURES
  • Article Code: T4183ELN00
  • Colour: Grey antracite
  • Installation: Pole
  • Material: Aluminum, polycarbonate, methacrilate
  • Series: Architectural Outdoor
  • design by: Ernesto Gismondi
LUMINAIRE
  • Watt: 106W
  • Voltage: 220V-240V
  • Delivered lumens output: 7609lm
  • CCT: 4000K
  • Efficiency: 77%
  • Efficacy: 71.78lm/W
  • CRI: 80

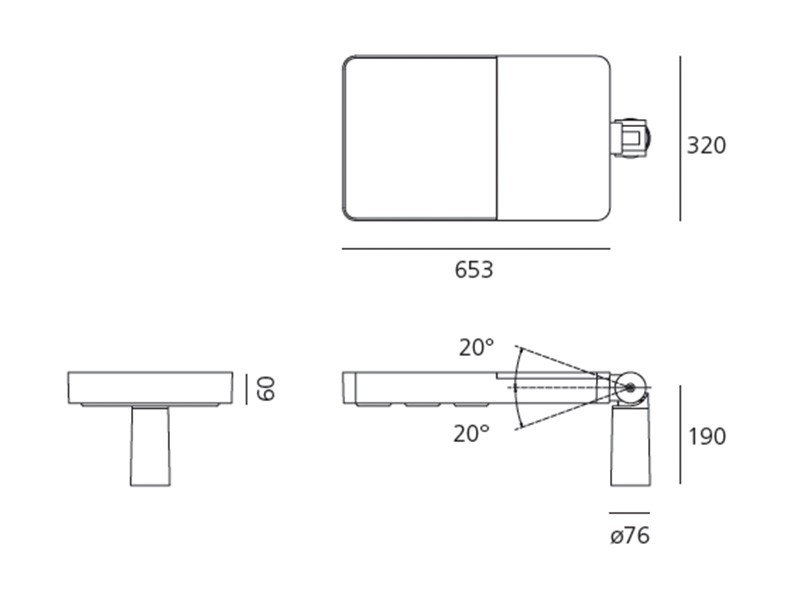

DIMENSIONS
  • Length: cm 60.8
  • Width: cm 32
  • Height: cm 600
  • Impact Resistance: IK10
  • Glow Wire Test: 750°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 106W
  • Color temperature (K): 4000K
Download all Product PDF
