Cefiso Pole - 3000K - Grey antracite

IP65

Downloadable files

2D Model
  • Cefiso Pole.dwg
  • Cefiso Pole.dxf
3D Model
  • Cefiso Pole.3ds
  • Cefiso Pole.stp
Silhouette
  • Cefiso Pole.jpg
Instructions
  • Y513000134F F_IS CEFISO PALO.pdf
DiaLux ULD File
  • T418200W10.uld
IES Europe
  • T418200W10.IES
IES USA
  • T418200W10.IES
LDT File
  • T418200W10.LDT
LDT PDF
  • T418200W10.PDF
Other
  • T418200W10.PDF
FEATURES
  • Product Code: T418200W10
  • Colour: Grey antracite
  • Installation: Floor
  • Material: Aluminum, tempered glass, methacrylate, galvanized iron
  • Series: Architectural Outdoor
  • design by: Alessandro Pedretti
LUMINAIRE
  • Watt: 41W
  • Voltage: 220V-240V
  • Delivered lumen output: 3110lm
  • CCT: 3000K
  • Efficiency: 72%
  • Efficacy: 75.87lm/W
  • CRI: 80

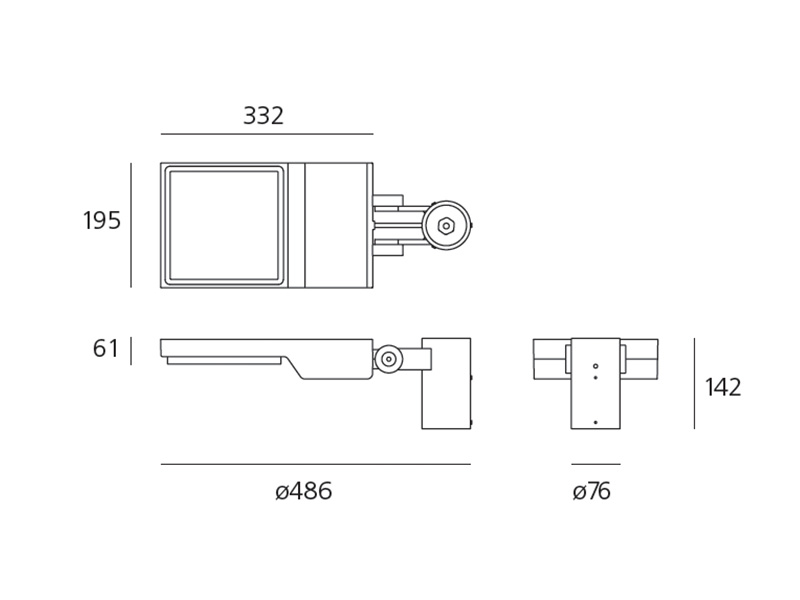

DIMENSIONS
  • Length: 485 mm
  • Width: 195 mm
  • Max Extension Height: 4000 mm
  • Impact Resistance: IK10
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 41W
  • Color temperature (K): 3000K
  • CRI: 80
Download all Data sheet PDF
