Calumet 13° wall 37° 3000K

IP65

Downloadable files

3D Model
  • Calumet 13 Ceiling.3ds
  • Calumet 13 Ceiling.stp
Silhouette
  • Calumet 13.jpg
Instructions
  • Y513000053C F_IS CALUMET SOFFITTO.pdf
DiaLux ULD File
  • T41961LW10.uld
IES Europe
  • T41961LW10.IES
IES USA
  • T41961LW10.IES
LDT File
  • T41961LW10.LDT
LDT PDF
  • T41961LW10.PDF
Other
  • T41961LW10.PDF
FEATURES
  • Product Code: T41961LW10
  • Colour: anthracite grey
  • Installation: Ceiling
  • Material: Aluminum, tempered glass, methacrylate
  • Series: Architectural Outdoor
  • design by: Ernesto Gismondi
LUMINAIRE
  • Watt: 7,5W
  • Voltage: 220V-240V
  • Delivered lumen output: 554lm
  • CCT: 3000K
  • Efficiency: 70%
  • Efficacy: 79.17lm/W
  • CRI: 80

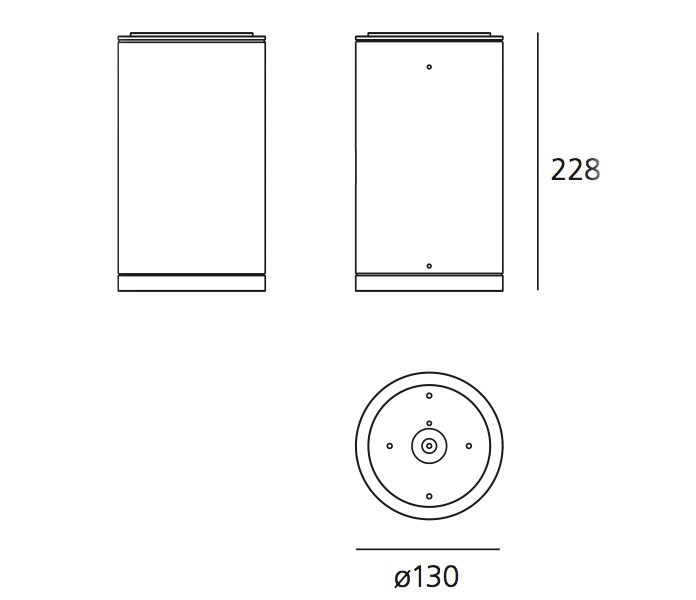

DIMENSIONS
  • Height: 228 mm
  • Diameter: 130 mm
  • Impact Resistance: 09
SOURCES INCLUDED
  • Category: Led
  • Number: 2
  • Watt: 4W
  • Delivered lumen output: 184lm
  • Color temperature (K): 3000K
  • CRI: 80 typ
Download all Data sheet PDF
