Reeds IP68 Triple

IP68

Downloadable files

3D Model
  • Reeds.3ds
  • Reeds.stp

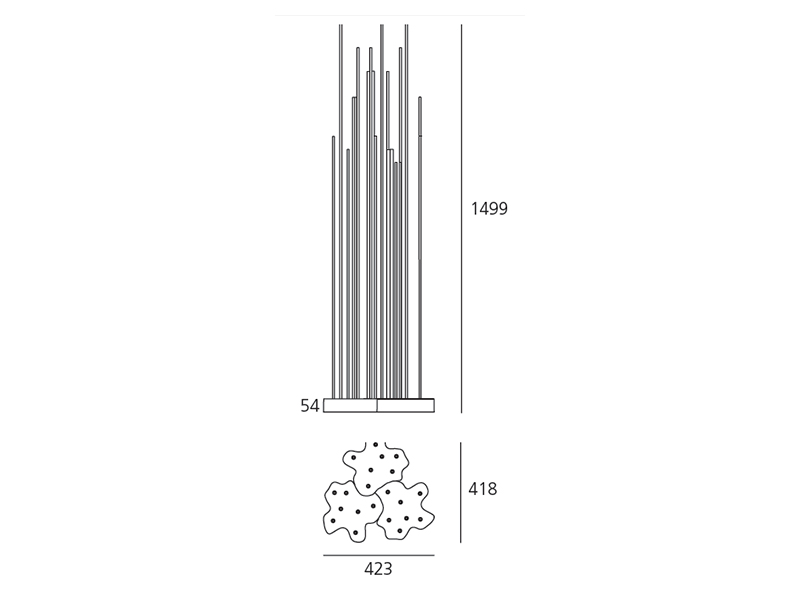

Silhouette
  • Reeds triplo.jpg
Instructions
  • Y513000152F-Reeds IP68.pdf
DiaLux ULD File
  • T087800.uld
IES Europe
  • T087800.IES
IES USA
  • T087800.IES
LDT File
  • T087800.LDT
LDT PDF
  • T087800.PDF
FEATURES
  • Product Code: T087800
  • Colour: Anthracite grey
  • Installation: Floor
  • Material: Methacrylate, polycarbonate
  • Series: Architectural Outdoor
  • design by: Klaus Begasse
LUMINAIRE
  • Watt: 23W
  • Voltage: 24V
  • Delivered lumen output: 314lm
  • CCT: 3000K
  • Efficiency: 10%
  • Efficacy: 13.65lm/W
  • CRI: 80
DIMENSIONS
  • Length: 420 mm
  • Width: 420 mm
  • Height: 1500 mm
  • Impact Resistance: IK10
  • Glow Wire Test: 750°
SOURCES INCLUDED
  • Category: Led
  • Number: 3
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: Life L70(17K) 102000h
Notes

Electronic ballast 24Vdc supplied separately.

Accessories
Driver - 90W - CV 110-240VAC - 24VDC – Undimmable - 161x61x36 (LxWxH) – IP65 - IP connectors not included
T409999
Driver - 60W - CV 110-240VAC - 24VDC – Undimmable - 163x43x32 (LxWxH) – IP65 - IP connectors not included
T409998
Download all Data sheet PDF
