Reeds IP68

IP68

Downloadable files

3D Model
  • Reeds.3ds
  • Reeds.stp
Silhouette
  • Reeds.jpg
Instructions
  • Y503002107B foglio istruzione alimentatori remoti.pdf
  • Y513000152F-Reeds IP68.pdf
DiaLux ULD File
  • T087500.uld
IES Europe
  • T087500.IES
IES USA
  • T087500.IES
LDT File
  • T087500.LDT
LDT PDF
  • T087500.PDF
Other
  • T087500.PDF
FEATURES
  • Product Code: T087500
  • Colour: Anthracite grey
  • Installation: Floor
  • Material: Methacrylate, polycarbonate
  • Series: Architectural Outdoor
  • design by: Klaus Begasse
LUMINAIRE
  • Watt: 8W
  • Voltage: 24V
  • Delivered lumen output: 105lm
  • CCT: 3000K
  • Efficiency: 10%
  • Efficacy: 13.12lm/W
  • CRI: 80

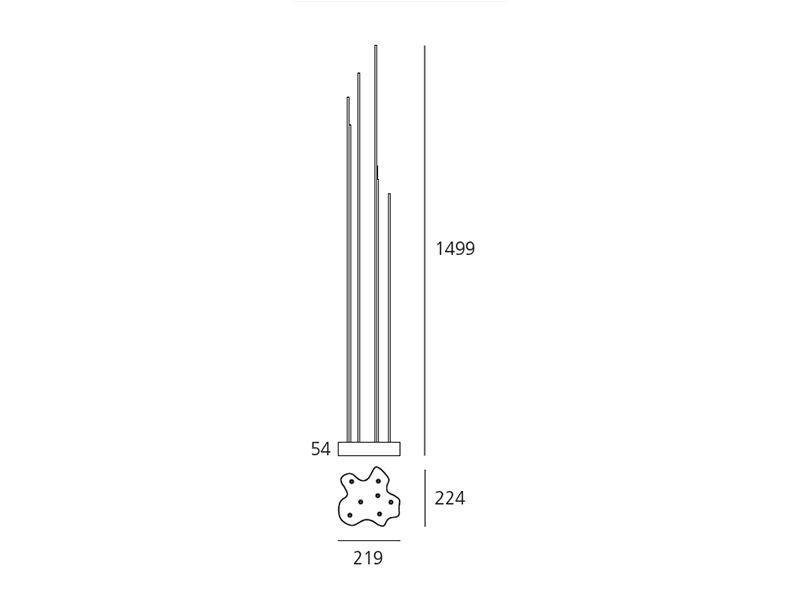

DIMENSIONS
  • Length: 220 mm
  • Width: 220 mm
  • Height: 1500 mm
  • Impact Resistance: IK10
  • Glow Wire Test: 750°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: Life L70(17K) 102000h
Notes

Electronic ballast 24Vdc supplied separately.

Accessories
Driver - 25W - CV 110-240VAC - 24VDC – Undimmable - 148x40x32 (LxWxH) – IP65 - IP connectors not included
T409996
Driver - 90W - CV 110-240VAC - 24VDC – Undimmable - 161x61x36 (LxWxH) – IP65 - IP connectors not included
T409999
Driver - 60W - CV 110-240VAC - 24VDC – Undimmable - 163x43x32 (LxWxH) – IP65 - IP connectors not included
T409998
