Sisifo

IP 20

Downloadable files

2D Model
  • Sisifo.dwg
  • Sisifo.dxf
3D Model
  • Sisifo.3ds
  • Sisifo.stp
Silhouette
  • Sisifo.jpg
Instructions
  • Y513000224C F_IS SISIFO.pdf
DiaLux ULD File
  • 1732020A.uld
IES Europe
  • 1732020A.IES
IES USA
  • 1732020A.IES
LDT File
  • 1732020A.LDT
LDT PDF
  • 1732020A.pdf
FEATURES
  • Product Code: 1732020A
  • Colour: White
  • Installation: Table
  • Material: methacrylate, aluminium
  • Series: Design Collection
  • design by: Scott Wilson
LUMINAIRE
  • Watt: 14W
  • Voltage: 24V
  • Delivered lumen output: 646lm
  • CCT: 3100K
  • Efficiency: 50%
  • Efficacy: 46.14lm/W
  • CRI: 0
  • Dimmer Typology: Touch Dimmer

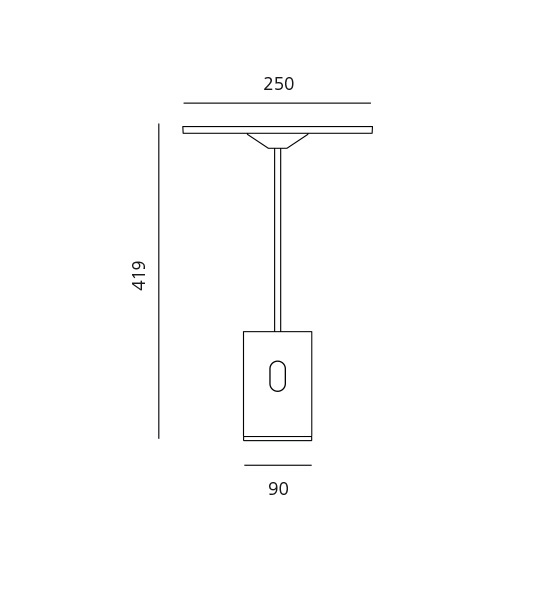

DIMENSIONS
  • Height: 419 mm
  • Diameter: 250 mm
  • Base Diameter: 90 mm
  • Glow Wire Test: 750°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 14W
  • Color temperature (K): 3000K
AWARDS

2015 – iF Product Design Award Deutschland

Download all Data sheet PDF
