Logico Mini Suspension - Silk Diffuser

IP20 Dimmerable:

Downloadable files

2D Model
  • Logico Sospensione Mini_2D.dwg
  • Logico Sospensione Mini_2D.dxf
3D Model
  • Logico Sospensione Mini_3D.3ds
  • Logico Sospensione Mini_3D.stp
Silhouette
  • Logico-Mini-Suspension.jpg
Instructions
  • Y503001968A Logico Micro Mini Sospensione.pdf
IES Europe
  • 0696020A.IES
IES USA
  • 0696020A.IES
LDT File
  • 0696020A.LDT
LDT PDF
  • 0696020A.PDF
FEATURES
  • Product Code: 0696020A
  • Colour: Silk
  • Installation: Suspension
  • Material: Blown glass, aluminium
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality, Office
  • Emission: Diffused And Direct
  • design by: Michele De Lucchi, Gerhard Reichert
LUMINAIRE *
  • Watt: 10,5W
  • Voltage: 220V-240V
  • Delivered lumen output: 969lm
  • Efficiency: 92%
  • Efficacy: 96.87lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

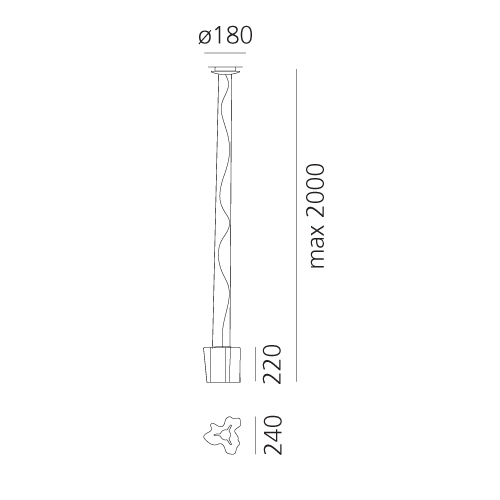

DIMENSIONS
  • Width: 240 mm
  • Height: 220 mm
  • Base Diameter: 180 mm
  • Max Height from ceiling: 2000 mm
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 12W
  • Socket: E27
Notes

Available in four sizes and in four configurations: single, on line, 3x120° and 4x90°. Its modular shape lends itself to the creation and realisation of customized compositions, supplied as special project. Logico nano track is available with track adapter.
