La Petite - Black

IP20

Downloadable files

2D Model
  • La Petite Tavolo_2D.dwg
  • La Petite Tavolo_2D.dxf
3D Model
  • La Petite Tavolo_3D.3ds
  • La Petite Tavolo_3D.stp
Silhouette
  • La Petite Tavolo_Silhouette
Instructions
  • Y513000357D F_IS LA PETITE TABLE.pdf
IES Europe
  • 1751030A.IES
IES USA
  • 1751030A.IES
LDT File
  • 1751030A.LDT
LDT PDF
  • 1751030A.PDF
FEATURES
  • Product Code: 1751030A
  • Colour: Black
  • Installation: Table
  • Material: polycarbonate, aluminium, methacrylate
  • Series: Design Collection
  • Environment: Indoor
  • design by: Quaglio Simonelli
LUMINAIRE *
  • Watt: 5W
  • Delivered lumen output: 307lm
  • Efficiency: 65%
  • Efficacy: 61.38lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

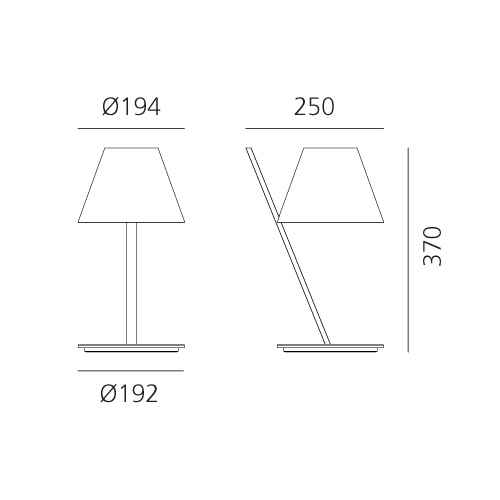

DIMENSIONS
  • Length: 250 mm
  • Width: 194 mm
  • Height: 370 mm
  • Base Diameter: 192 mm
  • Glow Wire Test: 650°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 6W
  • Socket: E14
