Cuneo Mini Wall/Floor Rust

IP65

Downloadable files

3D Model
  • Cuneo Mini_3D.3ds
  • Cuneo Mini_3D.stp
Silhouette
  • Cuneo Mini.jpg
Instructions
  • Y513000406A--FOGLIO ISTRUZ. CUNEO MINI.pdf
IES Europe
  • T082810.IES
IES USA
  • T082810.IES
LDT File
  • T082810.LDT
LDT PDF
  • T082810.PDF
FEATURES
  • Product Code: T082810
  • Colour: Rust
  • Installation: Wall, Floor
  • Material: Aluminum, metacrylate
  • Series: Architectural Outdoor
  • Environment: Outdoor
  • Area contract: Outdoor, Residential
  • Emission: Direct/indirect
  • design by: Klaus Begasse
LUMINAIRE
  • Watt: 11W
  • Voltage: 220V-240V
  • Delivered lumen output: 805lm
  • CCT: 3000K
  • Efficiency: 76%
  • Efficacy: 73.18lm/W
  • CRI: 90

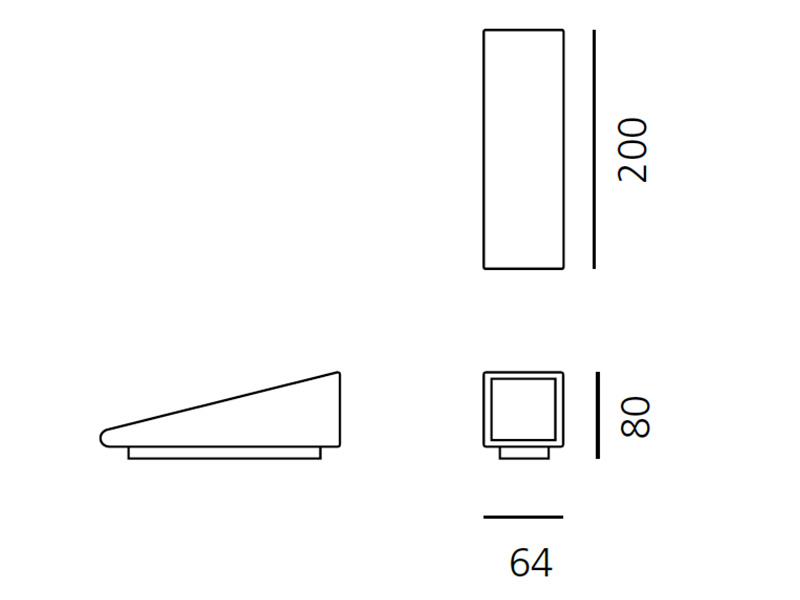

DIMENSIONS
  • Length: 200 mm
  • Width: 64 mm
  • Height: 80 mm
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 8,9W
  • Delivered lumen output: 1058lm
  • Color temperature (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
  • Service Life: L70(6K)=50000h
Download all Data sheet PDF
