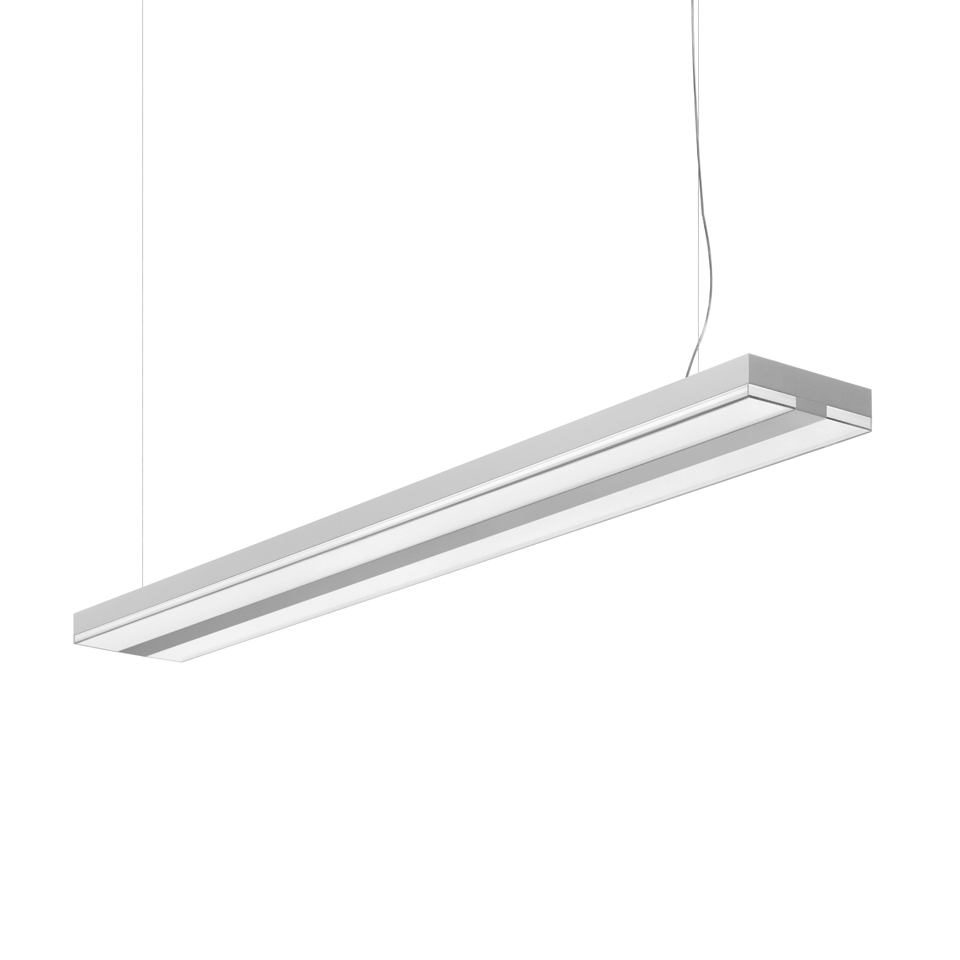

Chocolate Suspension LED - 63 W 4000 K Dimmable Dali - White

IP20 Dimmerable:
2D Model
  • Chocolate_Susp_2D.dwg
  • Chocolate_Susp_2D.dxf
3D Model
  • Chocolate_Susp_3D.3ds
  • Chocolate_Susp_3D.stp
Silhouette
  • Chocolate_suspension_sil.jpg
Instructions
  • CHOCOLATE SUSP_Y503300157#I=B.pdf
DiaLux ULD File
  • M113721.uld
IES Europe
  • M113721.IES
IES USA
  • M113721.IES
LDT File
  • M113721.LDT
LDT PDF
  • M113721.PDF
FEATURES
  • Article Code: M113721
  • Colour: White
  • Installation: Suspension
  • Material: Painted Aluminum
  • Series: Architectural Indoor
  • Area contract: Hospitality, Office
  • design by: a.g Licht
LUMINAIRE
  • Power Supply: Electronic Dimmable Dali Integrated
  • Watt: 55W
  • Voltage: 220V-240V
  • Delivered lumens output: 3728lm
  • CCT: 4000K
  • Efficiency: 46%
  • Efficacy: 67.79lm/W
  • CRI: 80
  • Dimmable Typology: Dali
DIMENSIONS
  • Length: cm 114
  • Width: cm 16
  • Height: cm 4
  • Max Height from ceiling: cm 120
  • Weight: kg 4.6
  • Glow Wire Test: 850°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 55W
  • Delivered lumens output: 8800lm
  • Color temperature (K): 4000K
  • CRI: =80 (min.)
  • Color Tolerance: MacAdam 4SDCM
  • Efficacy: 160lm/W
  • Service Life: L70(6K)>50.000h
Download all Product PDF
