Parabola 100 - Round - Adjustable - 76° - 3000K - White

IP40 Dimmerable:

Downloadable files

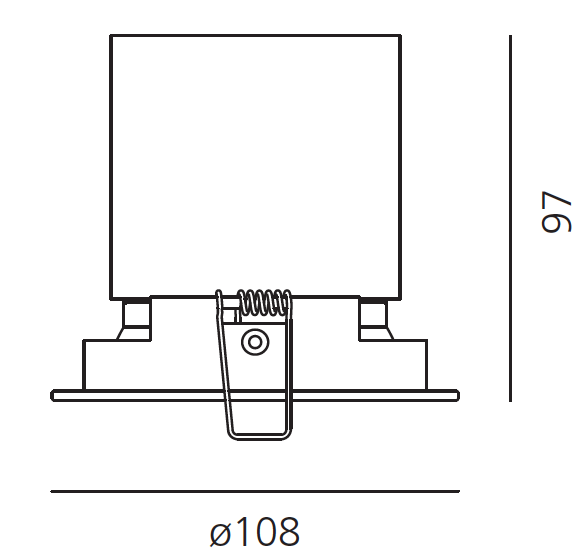

Silhouette
  • Parabola 100_adjustable.jpg
Instructions
  • Y503500013E F_IS PARABOLA 80 100.pdf
DiaLux ULD File
  • NL1907480K006.uld
IES Europe
  • NL1907480K006.IES
IES USA
  • NL1907480K006.IES
LDT File
  • NL1907480K006.LDT
LDT PDF
  • NL1907480K006.pdf
FEATURES
  • Product Code: NL1907480K006
  • Colour: White
  • Material: Aluminium
  • Series: Architectural Indoor
  • Environment: Indoor
  • Area contract: Hospitality, null, Retail, Office, Culture, Residential
  • design by: Studio Artemide
LUMINAIRE
  • Watt: 17W
  • Delivered lumen output: 1544lm
  • CCT: 3000K
  • Efficiency: 73%
  • Efficacy: 90.8lm/W
  • CRI: 90
DIMENSIONS
  • Diameter: 108 mm
  • Recessed depth: 97 mm
  • Weight: kg 0.5
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 17W
  • Delivered lumen output: 1982lm
  • Color temperature (K): 3000K
  • CRI: 80
  • Color Tolerance: MacAdam 3SDCM
  • Efficacy: 114lm/W
  • Service Life: L70(9K) > 54000h
Notes

Driver 500mA SELV supplied separately.
Geo-LiFi Compatible

Accessories
Driver cc 32-36W - 700mA - 220-240 Vac - 103x67x21 (LxWxH) - Dimmable DALI
M079200
DRIVER cc 32-36W - 700mA - 220-240 - 103x67x21 (LxWxH) - Dimmable PUSH/1-10V
M079300
DRIVER cc 20W 5000mA 220-240 125 38 23 1max Non dimmable
M077600
Power Kit Geo-LiFi - CC Mod=50% - 230x80x25h - Undimmable VLCcoding - The nominal flux for this application is halved
DV1060
