Eggboard Matrix - 1600x800 - Direct + Indirect - 4000K - Grey

IP20 Dimmerable:
3D Model
  • Eggboard 1600x800_3D.stp
  • Eggboard 1600x800_3D.3ds
Silhouette
  • Eggboard-Matrix-1600x800.jpg
Instructions
  • Eggboard_Matrix_1600x800_Instructions.pdf
  • Eggboard Matrix Acoustic Information.pdf
3D BIM Revit
  • Artemide Eggboard Matrix EN.zip
DiaLux ULD File
  • M3101N91_1_new.uld
IES Europe
  • M3101N91_IND.IES
  • M3101N91.IES
IES USA
  • M3101N91_IND.IES
  • M3101N91.IES
LDT File
  • M3101N91_IND.LDT
  • M3101N91.LDT
LDT PDF
  • M3101N91.PDF
  • M3101N91_IND.PDF
FEATURES
  • Article Code: M3101N91
  • Colour: Grey
  • Installation: Suspension
  • Series: Architectural Indoor
  • design by: Progetto CMR - Giacobone & Roj
LUMINAIRE
  • Watt: 75 + 44W
  • Delivered lumens output: 6909 + 4018lm
  • CCT: 4000K
  • Efficiency: 74%
  • Efficacy: 92.13lm/W
  • CRI: 80
  • Dimmable Typology: Dali

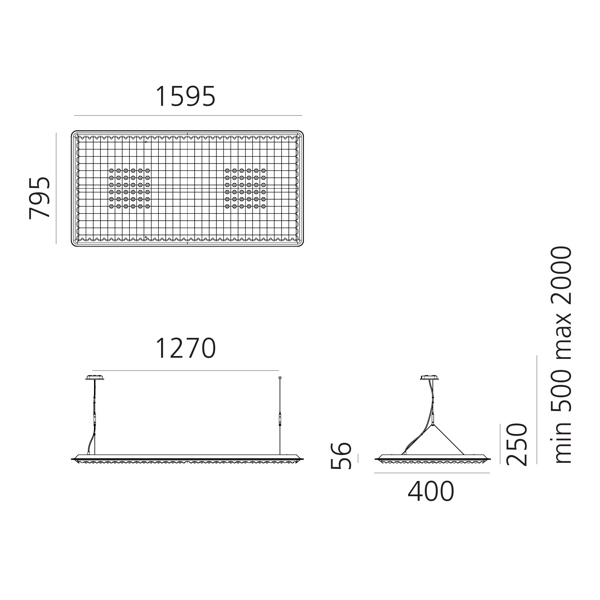

DIMENSIONS
  • Length: cm 159.5
  • Width: cm 79.5
  • Height: cm 25
  • Weight: kg 17.7
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 65W
  • Delivered lumens output: 8876lm
  • Color temperature (K): 4000K
  • CRI: =80(min.)
  • Color Tolerance: MacAdam 4SDCM
  • Efficacy: 131lm/W
  • Service Life: L70(6K)>50000h
Notes

UGR<19
