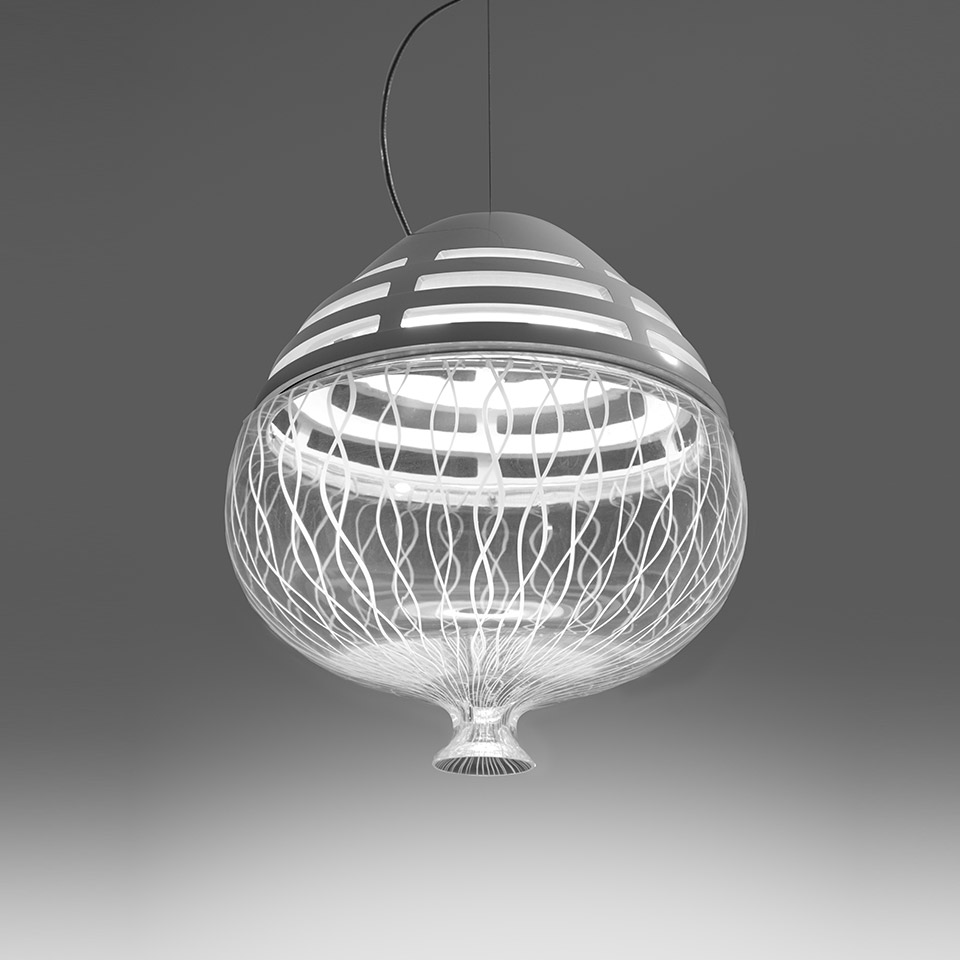

Invero 214 Suspension LED 3000K White

IP20 Dimmerable:

Downloadable files

3D Model
  • Invero 214 Sospensione_3D.3ds
  • Invero 214 Sospensione_3D.stp
Silhouette
  • Invero 214 Sospensione_Silhouette
Instructions
  • Y513000451--FOGLIO ISTRUZ. INCALMO-INCIPIT-INVERO 214 SOSP.pdf
IES Europe
  • 1902120A+1908240A.IES
IES USA
  • 1902120A+1908220A.IES
LDT File
  • 1902120A+1908220A.LDT
LDT PDF
  • 1902120A+1908220A.PDF
FEATURES
  • Product Code: 1902120A + 1908220A
  • Colour: White
  • Installation: Suspension
  • Material: Glass, aluminium, methacrylate
  • Series: Scenarios
  • design by: Carlotta de Bevilacqua
LUMINAIRE
  • Watt: 29W
  • Delivered lumen output: 1581lm
  • CCT: 3000K
  • Efficiency: 66%
  • Efficacy: 54.53lm/W
  • CRI: 95
  • Dimmable Typology: Push

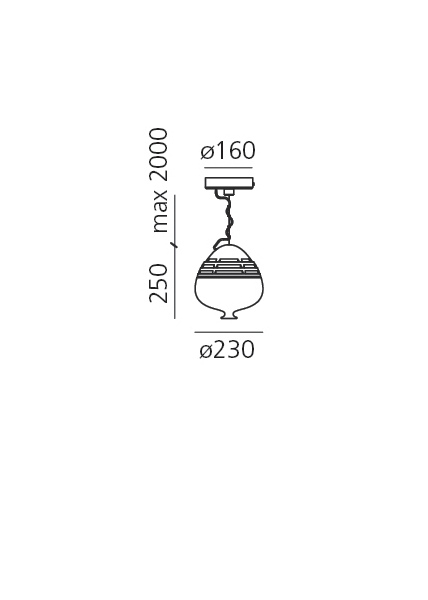

DIMENSIONS
  • Height: 250 mm
  • Diameter: 230 mm
  • Base Diameter: 160 mm
  • Max Height from ceiling: 2000 mm
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 27W
  • Delivered lumen output: 3200lm
  • Color temperature (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
Notes

The product is composed of two distinct codes to be ordered separately: body lamp and crystal glass diffuser.

Download all Data sheet PDF
