Ego Flat 90 downlight Round 24° 3000K Aluminium IK10
IP
65/67
Downloadable files
3D Model
Ego 90 Flat Downlight Round.3ds
Ego 90 Flat Downlight Round.stp
Silhouette
Ego 90 DL
Instructions
Ego Flat 90 Down-Light
IES Europe
T42003FLW00.IES
IES USA
T42003FLW00.IES
LDT File
T42003FLW00.LDT
LDT PDF
T42003FLW00.PDF
FEATURES
Product Code:
T42003FLW00
Series:
Architectural Outdoor
design by:
Studio Artemide
LUMINAIRE
Power Supply:
Electronic ballast supplied separately
Watt:
3,2W
Delivered lumen output:
179lm
CCT:
3000K
Efficiency:
62%
Efficacy:
59.67lm/W
CRI:
80

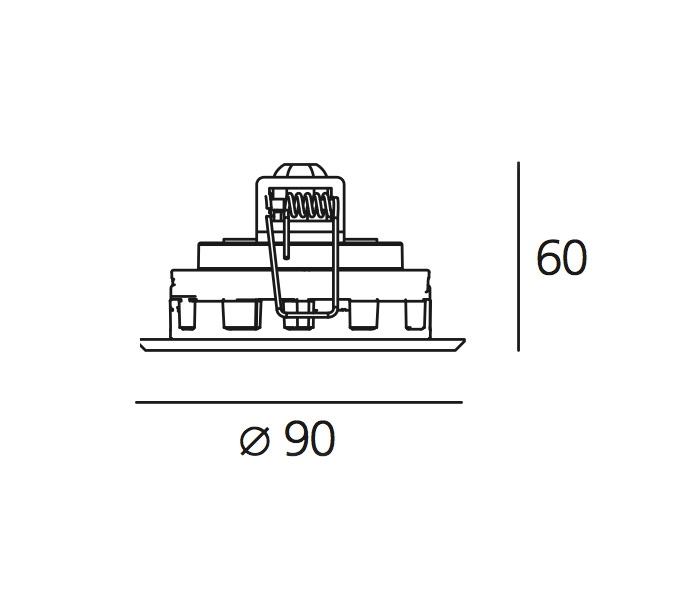

DIMENSIONS
Diameter:
90 mm
Cutout diameter:
80 mm
Recessed depth:
60 mm
Cutout shape:
Rounded
Impact Resistance:
IK10
SOURCES INCLUDED
Category:
Led
Number:
1
Watt:
3W
Delivered lumen output:
233lm
Color temperature (K):
3000K
CRI:
80
Color Tolerance:
MacAdam 4SDCM
Efficacy:
73lm/W
Service Life:
L70(10K) > 60500h
Notes
Flood opticWide luminous flow suitable for lighting large areas.
Accessories
Driver - 14W - 350mA - IP67 - 79x38x25 (LxWxH) - Undimmable
DV3001
Driver 38W - 220-240 - 185x35x33 (LxWxH) - IP67 - Dimmable DALI
DV1042
