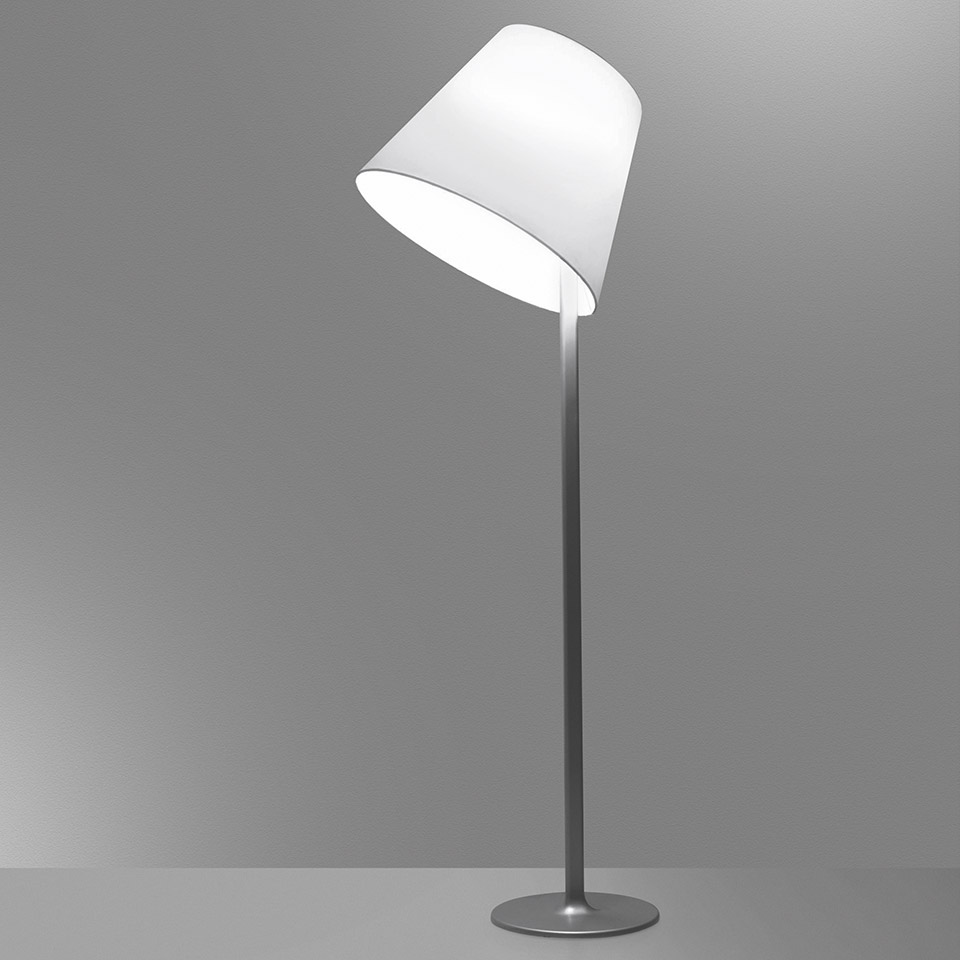

Melampo Mega - Grey

IP20 Dimmerable:

Downloadable files

2D Model
  • Melampo_Mega.dwg
  • Melampo_Mega.dxf
3D Model
  • Melampo_Mega.3ds
  • Melampo_Mega.stp
Silhouette
  • Melampo-Mega.jpg
Instructions
  • Y513001125A_Melampo Mega.pdf
IES Europe
  • 0577010A.IES
IES USA
  • 0577010A.IES
LDT File
  • 0577010A.LDT
LDT PDF
  • 0577010A.PDF
FEATURES
  • Product Code: 0577010A
  • Colour: Grey
  • Installation: Floor
  • Material: Base in painted zamac, painted aluminum stem, diffuser in silk satin fabric on a technopolymer frame
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality, Residential
  • Emission: Direct, Diffused Adjustable, indirect
  • design by: Adrien Gardère
LUMINAIRE *
  • Watt: 42W
  • Voltage: 220V-240V
  • Delivered lumen output: 3043lm
  • Efficiency: 62%
  • Efficacy: 72.45lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

DIMENSIONS
  • Height: 1740 mm
  • Diameter: 570 mm
  • Base Diameter: 350 mm
  • Max Extension Height: 2170 mm
  • Inclination: 34
  • Impact Resistance: N/D
  • Glow Wire Test: 650°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 2
  • Watt: MAX 21W
AWARDS

1999 – Design Innovationen Design Zentrum Nordrhein Westfalen Reddot Design Award Essen (Deutschland)

Notes

With dimmer. Adjustable diffuser into three different positions.
