Meteorite 48 Ceiling

IP20 Dimmerable:

Downloadable files

2D Model
  • Meteorite.dwg
  • Meteorite.dxf
3D Model
  • Meteorite48.3ds
  • Meteorite48.stp
Silhouette
  • Meteorite-48-Ceiling.jpg
Instructions
  • Y513000576B F_IS METEORITE 48 CEILING.pdf
DiaLux ULD File
  • 1701010A.uld
IES Europe
  • 1712010A.IES
IES USA
  • 1712010A.IES
LDT File
  • 1712010A.LDT
LDT PDF
  • 1712010A.PDF
FEATURES
  • Product Code: 1712010A
  • Colour: white
  • Installation: Ceiling
  • Material: Steel and brass frame, blown frosted glass diffuser with acid- etching treatment
  • Series: Design Collection
  • design by: Pio & Tito Toso
LUMINAIRE *
  • Watt: 21W
  • Voltage: 220V - 240V
  • Delivered lumen output: 1904lm
  • Efficiency: 78%
  • Efficacy: 90.68lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

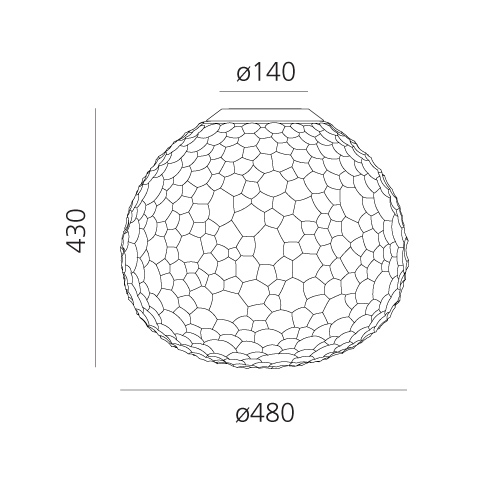

DIMENSIONS
  • Height: 430 mm
  • Diameter: 480 mm
  • Base Diameter: 140 mm
  • Glow Wire Test: 850°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 21W
  • Socket: E27
