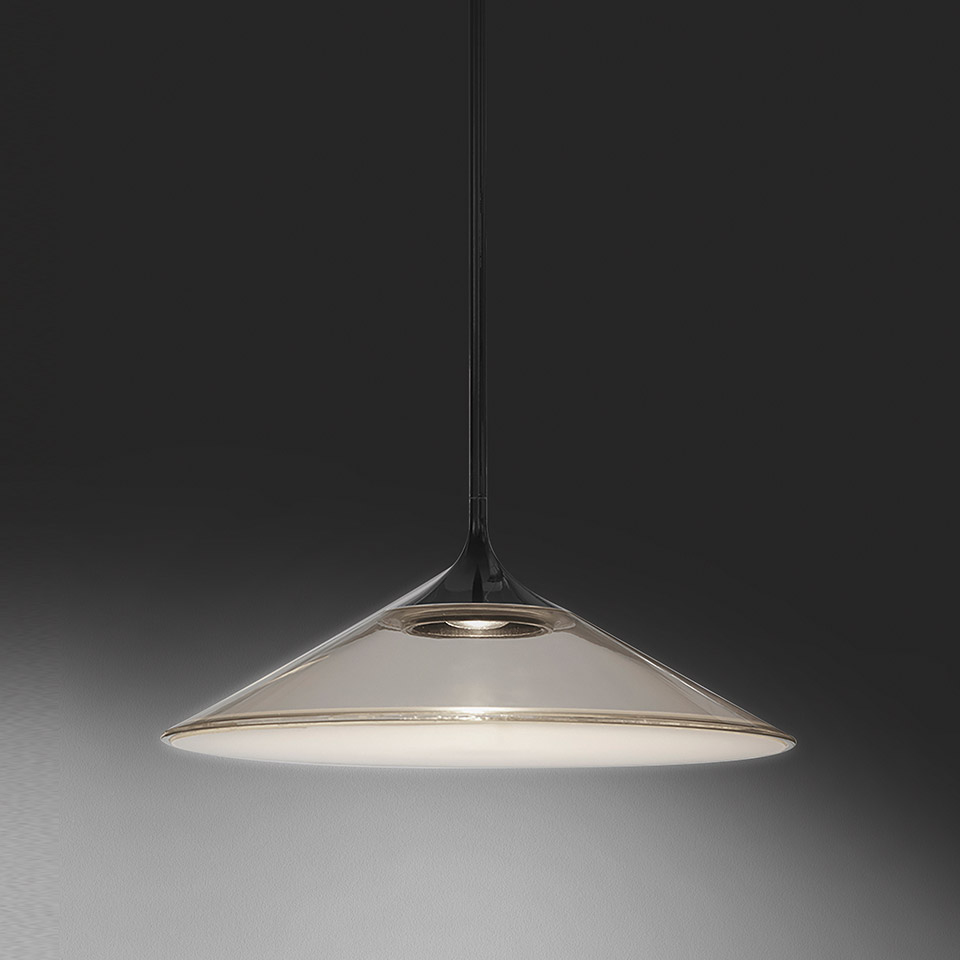

Orsa 35

IP20 Dimmerable:

Downloadable files

2D Model
  • Orsa35.dwg
  • Orsa35.dxf
3D Model
  • Orsa35.3ds
  • Orsa35.stp

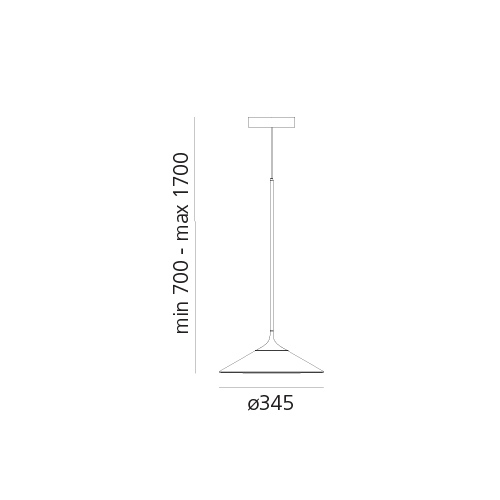

Silhouette
  • Orsa_35_silhouette
Instructions
  • Y513000783-FOGLIO ISTRUZ- ORSA 21-35.pdf
IES Europe
  • 0352030A.IES
IES USA
  • 0352030A.IES
LDT File
  • 0352030A.LDT
LDT PDF
  • 0352030A.PDF
FEATURES
  • Product Code: 0352030A
  • Colour: Black
  • Installation: Suspension
  • Material: methacrylate, aluminum, brass
  • Series: Design Collection
  • Environment: Indoor
  • Emission: Direct
  • design by: Foster + Partners Industrial Design
LUMINAIRE
  • Watt: 20W
  • Voltage: 220-240V
  • Delivered lumen output: 1861lm
  • CCT: 3000K
  • Efficiency: 90%
  • Efficacy: 93.03lm/W
  • CRI: 90
  • Dimmable Typology: Push
DIMENSIONS
  • Height: 700 mm
  • Diameter: 345 mm
  • Max Height from ceiling: 1700 mm
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 17.41W
  • Delivered lumen output: 2077lm
  • Color temperature (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
  • Efficacy: 119lm/W
  • Service Life: 50000-L70
Download all Data sheet PDF
