Cabildo Wall LED 3000K

IP20 Dimmerable:

Downloadable files

2D Model
  • Cabildo_2D.dwg
  • Cabildo_2D.dxf
3D Model
  • Cabildo_3D.3ds
  • Cabildo_3D.stp
Silhouette
  • Cabildo-Wall.jpg
Instructions
  • Y513000392 Cabildo Led Parete.pdf
IES Europe
  • 1181010A.IES
IES USA
  • 1181010A.IES
LDT File
  • 1181010A.LDT
LDT PDF
  • 1181010A.PDF
FEATURES
  • Product Code: 1181010A
  • Colour: White
  • Installation: Wall
  • Material: Aluminium
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Residential
  • Emission: Indirect Diffused
  • design by: Eric Solè
LUMINAIRE
  • Watt: 28W
  • Voltage: 220-240V
  • Delivered lumen output: 2137lm
  • CCT: 3000K
  • Efficiency: 73%
  • Efficacy: 76.32lm/W
  • CRI: 95
  • Dimmable Typology: Push

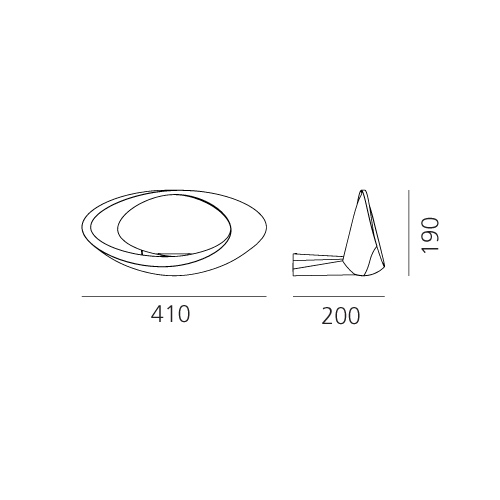

DIMENSIONS
  • Length: 200 mm
  • Width: 410 mm
  • Height: 190 mm
  • Glow Wire Test: 750°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 28 W
  • Delivered lumen output: 3200lm
  • Color Rendering: 90
  • Color temperature (K): 3000K
  • Color Tolerance: MacAdam 2SDCM
Notes

Lamp included.

Download all Data sheet PDF
