Choose Table - Parchment/Gray anthracite

IP20

Downloadable files

2D Model
  • Choose_tavolo_2D.dwg
  • Choose_tavolo_2D.dxf
3D Model
  • Choose_tavolo_3D.3ds
  • Choose_tavolo_3D.stp
Silhouette
  • Choose Tavolo_SIL
Instructions
  • Y503001093D F_IS CHOOSE TABLE.pdf
IES Europe
  • 1128020A.IES
IES USA
  • 1128020A.IES
LDT File
  • 1128020A.LDT
LDT PDF
  • 1128020A.PDF
FEATURES
  • Product Code: 1128020A
  • Colour: Parchment/Gray anthracite
  • Installation: Table
  • Material: Metal, zamac, polycarbonate, parchment paper
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality
  • Emission: Direct Spot
  • design by: Matteo Thun & Partners
LUMINAIRE *
  • Watt: 12W
  • Voltage: 220V-240V
  • Delivered lumen output: 1291lm
  • Efficiency: 85%
  • Efficacy: 107.61lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

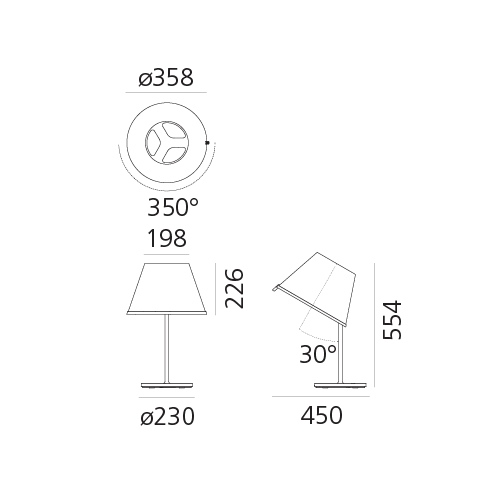

DIMENSIONS
  • Height: 554 mm
  • Diameter: 358 mm
  • Base Diameter: 230 mm
  • Max Extension Length: 450 mm
  • Inclination: 30
  • Rotation: 350°
  • Impact Resistance: N/D
  • Glow Wire Test: 750°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 12W
  • Socket: E27
Notes

The diffuser tilts 30° and rotates 350° on its axis.
