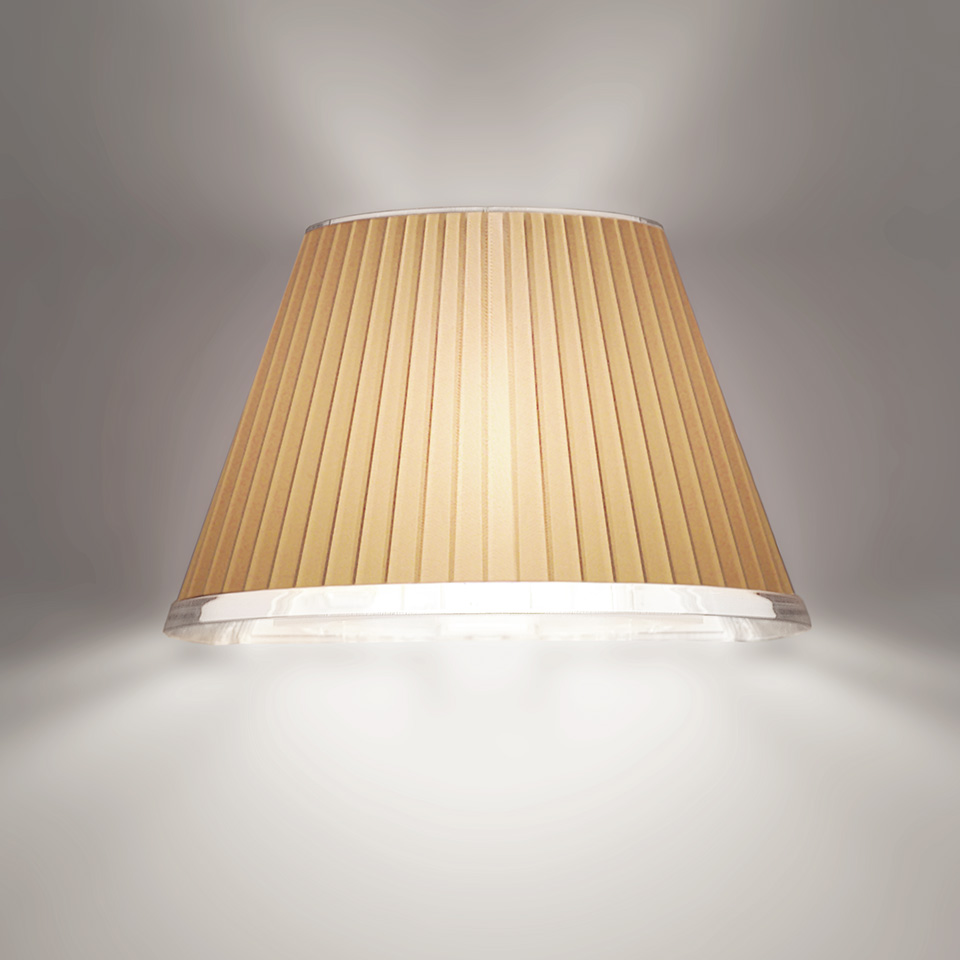

Choose Wall IP23 - Parchment

IP23 Dimmerable:

Downloadable files

2D Model
  • Choose_parete_2D.dwg
  • Choose_parete_2D.dxf
3D Model
  • Choose_parete_3D.3ds
  • Choose_parete_3D.stp
Silhouette
  • Choose_parete_sil.jpg
Instructions
  • Y503001087B F_IS CHOOSE WALL.pdf
IES Europe
  • 1142020A.IES
IES USA
  • 1142020A.IES
LDT File
  • 1142020A.LDT
LDT PDF
  • 1142020A.PDF
FEATURES
  • Product Code: 1142020A
  • Colour: Transparent + Natural
  • Installation: Wall
  • Material: polycarbonate, parchment
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality
  • Emission: Direct Spot
  • design by: Matteo Thun & Partners
LUMINAIRE *
  • Watt: 5W
  • Voltage: 220V-240V
  • Delivered lumen output: 349lm
  • Efficiency: 74%
  • Efficacy: 69.82lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

DIMENSIONS
  • Width: 237 mm
  • Height: 146 mm
  • Depth: 184 mm
  • Impact Resistance: N/D
  • Glow Wire Test: 750°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 6W
  • Socket: E14
Notes

On/off switch on body lamp.

Download all Data sheet PDF
