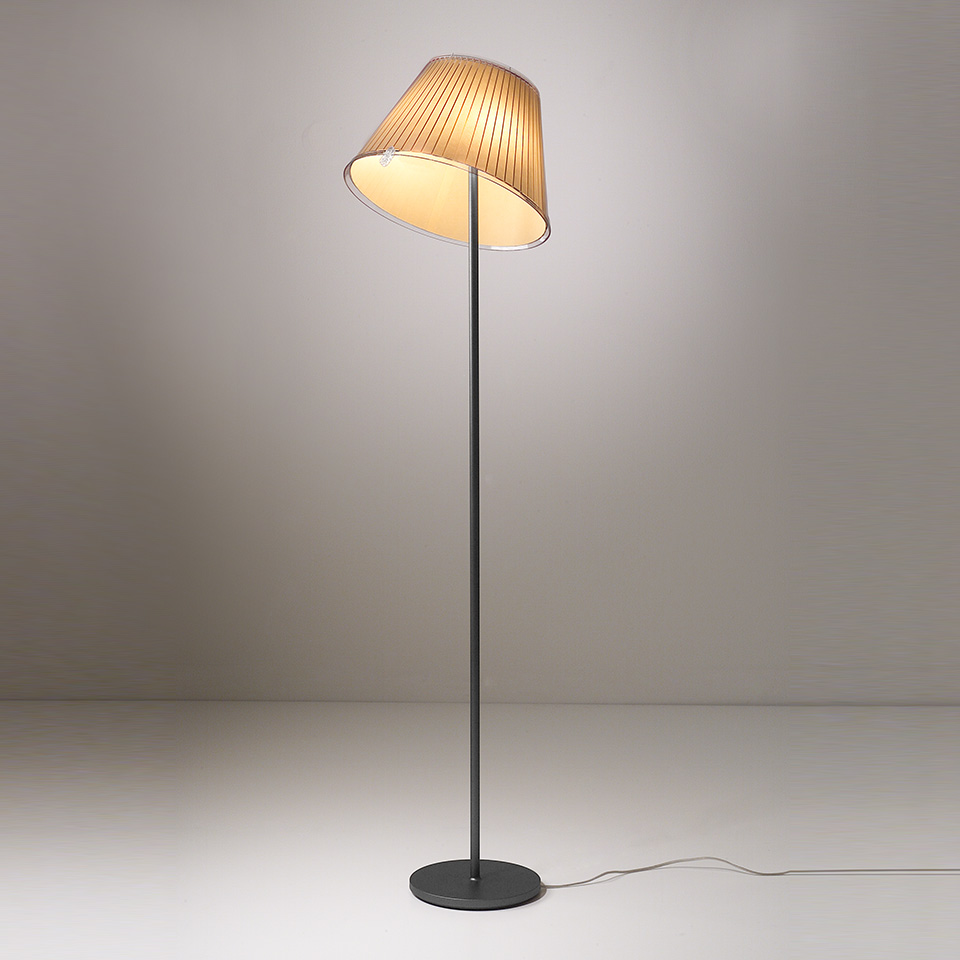

Choose Floor - Parchment/Gray anthracite

IP20

Downloadable files

2D Model
  • Choose_terra_2D.dwg
  • Choose_terra_2D.dxf
3D Model
  • Choose_terra_3D.3ds
  • Choose_terra_3D.stp

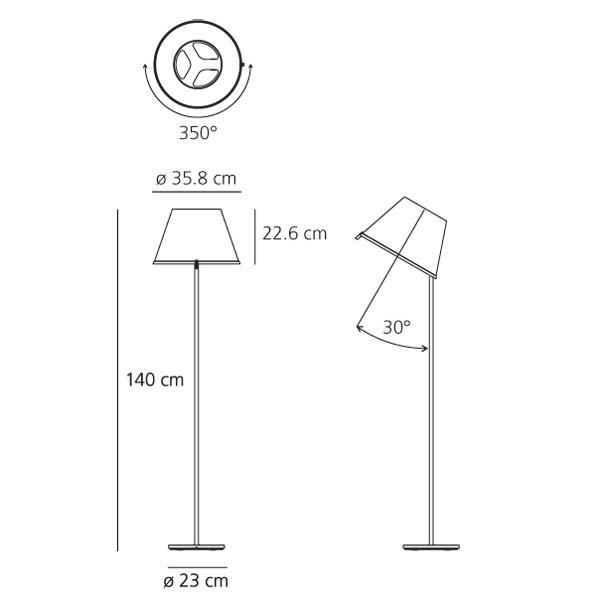

Silhouette
  • Choose_terra_sil.jpg
Instructions
  • Y503001094D F_IS CHOOSE FLOOR.pdf
IES Europe
  • 1136020A.IES
IES USA
  • 1136020A.IES
LDT File
  • 1136020A.LDT
LDT PDF
  • 1136020A.PDF
FEATURES
  • Product Code: 1136020A
  • Colour: Parchment/Gray anthracite
  • Installation: Floor
  • Material: Polycarbonate, parchment paper, steel, zamak
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality
  • Emission: Direct Spot
  • design by: Matteo Thun & Partners
LUMINAIRE *
  • Watt: 24W
  • Voltage: 220V-240V
  • Delivered lumen output: 2583lm
  • Efficiency: 85%
  • Efficacy: 107.61lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

DIMENSIONS
  • Height: 1400 mm
  • Diameter: 358 mm
  • Base Diameter: 230 mm
  • Glow Wire Test: 750°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 2
  • Watt: MAX 12W
  • Socket: E27
Download all Data sheet PDF
