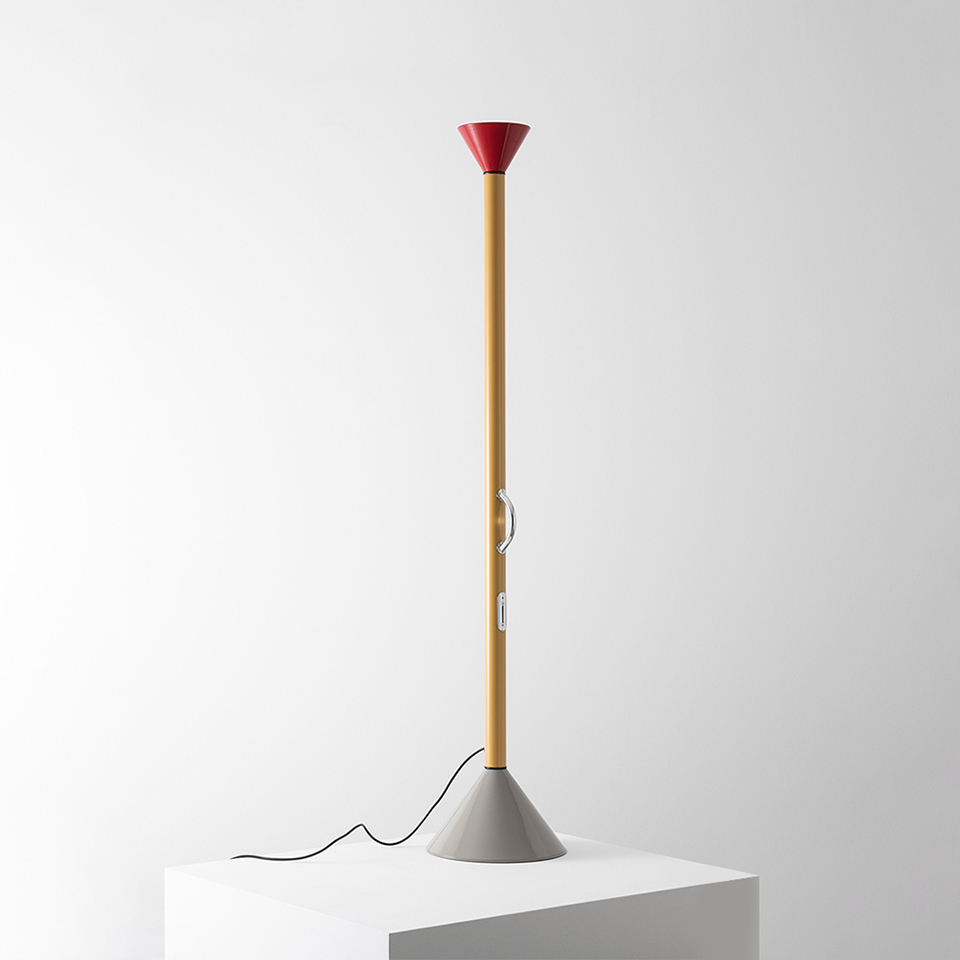

Callimaco LED 2700K

IP20

Downloadable files

2D Model
  • Callimaco_2D.dwg
  • Callimaco_2D.dxf
3D Model
  • Callimaco_3D.3ds
  • Callimaco_3D.stp

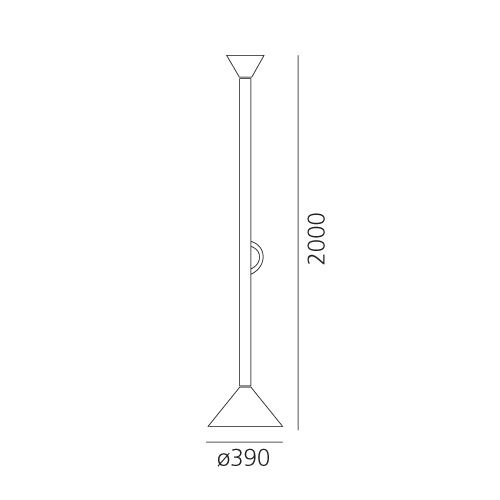

Silhouette
  • Callimaco_sil.jpg
Instructions
  • Y513000162C F_IS CALLIMACO LED.pdf
IES Europe
  • A0111W00.IES
IES USA
  • A0111W00.IES
LDT File
  • A0111W00.LDT
LDT PDF
  • A0111W00.PDF
FEATURES
  • Product Code: A0111W00
  • Colour: Multicolour
  • Installation: Floor
  • Material: Aluminium, steel
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Residential
  • Emission: Indirect
  • design by: Ettore Sottsass
LUMINAIRE
  • Watt: 43W
  • Voltage: 220V-240V
  • Delivered lumen output: 3225lm
  • CCT: 2700K
  • Efficiency: 92%
  • Efficacy: 75lm/W
  • CRI: 90
DIMENSIONS
  • Height: 2000 mm
  • Diameter: 390 mm
  • Glow Wire Test: 650°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 36.36W
  • Delivered lumen output: 3646lm
  • Color temperature (K): 2700K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
  • Efficacy: 100lm/W
  • Service Life: 50000-L70
AWARDS

Twentieth Century Design Collection of the Metropolitan Museum of Art New York (US) The Israel Museum Jerusalem (Israel)

Notes

LED included, with dimmer.

Download all Data sheet PDF
