Logico Micro Wall - Silk Diffuser

IP20 Dimmerable:

Downloadable files

2D Model
  • Logico Parete Micro_2D.dwg
  • Logico Parete Micro_2D.dxf
3D Model
  • Logico Parete Micro_3D.3ds
  • Logico Parete Micro_3D.stp
Silhouette
  • Logico-Micro-Wall.jpg
Instructions
  • Y503000885E F_IS LOGICO MICRO WALL.pdf
IES Europe
  • 0846030A.IES
IES USA
  • 0846030A.IES
LDT File
  • 0846030A.LDT
LDT PDF
  • 0846030A.PDF
FEATURES
  • Product Code: 0846030A
  • Colour: Silk
  • Installation: Wall
  • Material: Blown glass, steel
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality, null, Office, Residential
  • Emission: Diffused And Direct
  • design by: Michele De Lucchi, Gerhard Reichert
LUMINAIRE *
  • Watt: 5W
  • Voltage: 220V-240V
  • Delivered lumen output: 279lm
  • Efficiency: 59%
  • Efficacy: 55.70lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

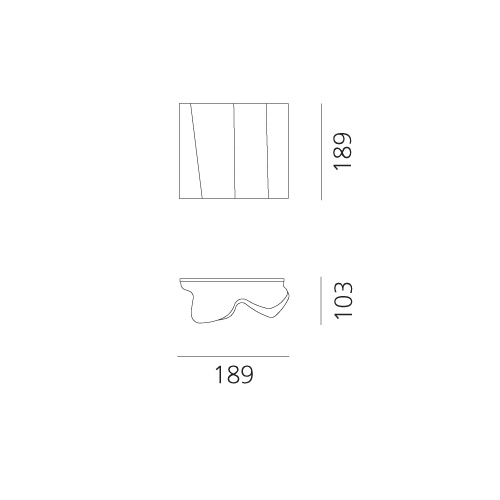

DIMENSIONS
  • Length: 189 mm
  • Width: 103 mm
  • Height: 189 mm
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 6W
  • Socket: E14
AWARDS

2002 – Design Innovationen Design Zentrum Nordrhein Westfalen Reddot Design Award Essen (Deutschland)

Download all Data sheet PDF
