Skydro Ceiling Led 2700K

IP20 Dimmerable:
2D Model
  • Skydro_2D.dwg
  • Skydro_2D.dxf
3D Model
  • Skydro_3D.3ds
  • Skydro_3D.stp
Silhouette
  • Skydro_sil.jpg
Instructions
  • y503001704 Skydro kit montaggio moduli.pdf
  • Y513000274 Skydro Led COB.pdf
IES Europe
  • 1245W10A.IES
IES USA
  • 1245W10A.IES
LDT File
  • 1245W10A.LDT
LDT PDF
  • 1245W10A.PDF
FEATURES
  • Product Code: 1245W10A
  • Colour: Polished chrome
  • Installation: Ceiling
  • Material: Aluminium, steel, ABS
  • Series: Design Collection
  • Environment: Indoor
  • Emission: Indirect
  • design by: Ross Lovegrove
LUMINAIRE
  • Watt: 29W
  • Delivered lumen output: 1554lm
  • CCT: 2700K
  • Efficiency: 58%
  • Efficacy: 53.59lm/W
  • CRI: 90
  • Dimmable Typology: Push

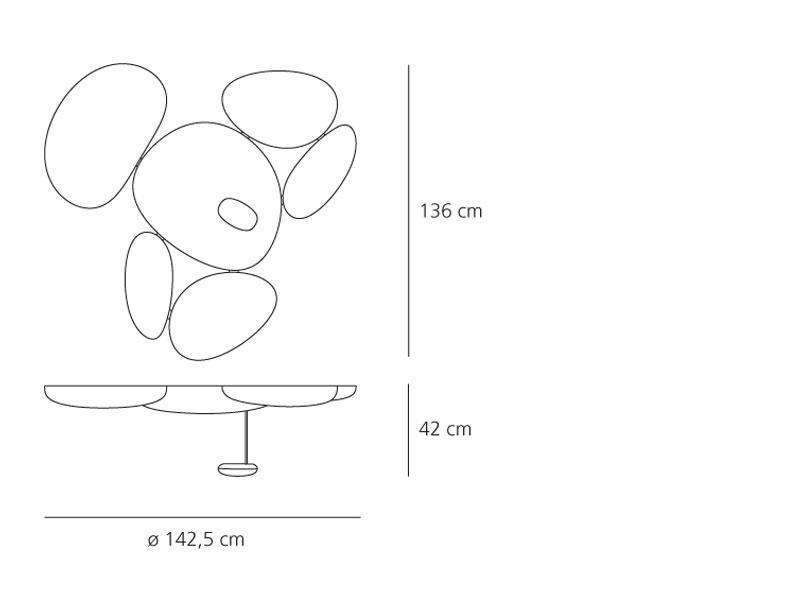

DIMENSIONS
  • Height: 1360 mm
  • Diameter: 1420 mm
  • Depth: 420 mm
  • Glow Wire Test: 960°C
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 29W
  • Color temperature (K): 2700K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
Notes

Available in two versions: the first, in which the indirect light comes from a lighting unit integrated into the lamp, the second, in which the indirect light comes from a wall projector that is separate from the lamp. Skydro is a sectional unit that enables numerous elements to be added. To assemble the multiple units it needs - in addition to the basic units (with or without light source) - an assembly kit (template) and cable kits for the electrical connection.

Accessories
SKYDRO PLAFONE KIT MONTAGGIO MODULI
1235010A
SKYDRO PLAFONE LED KIT CAVI COLLEG.
1246010A
SKYDRO PLAFONE *
1234010A
Download all Data sheet PDF
