Droplet Ceiling LED 2700K

IP20 Dimmerable:

Downloadable files

2D Model
  • Droplet_soffitto.dwg
  • Droplet_soffitto.dxf
3D Model
  • Droplet_soffitto.3ds
  • Droplet_soffitto.stp
Silhouette
  • Droplet-ceiling.jpg
Instructions
  • Y513000276D F_IS DROPLET LED.pdf
IES Europe
  • 1474W10A.IES
IES USA
  • 1474W10A.IES
LDT File
  • 1474W10A.LDT
LDT PDF
  • 1474W10A.PDF
FEATURES
  • Product Code: 1474W10A
  • Colour: Polished chrome / Aluminium
  • Installation: Ceiling
  • Material: Aluminium, steel
  • Series: Design Collection, Hydro
  • Environment: Indoor
  • Emission: Indirect
  • design by: Ross Lovegrove
LUMINAIRE
  • Watt: 87W
  • Voltage: 220V-240V
  • Delivered lumen output: 3031lm
  • CCT: 2700K
  • Efficiency: 38%
  • Efficacy: 34.84lm/W
  • CRI: 90
  • Dimmable Typology: Push

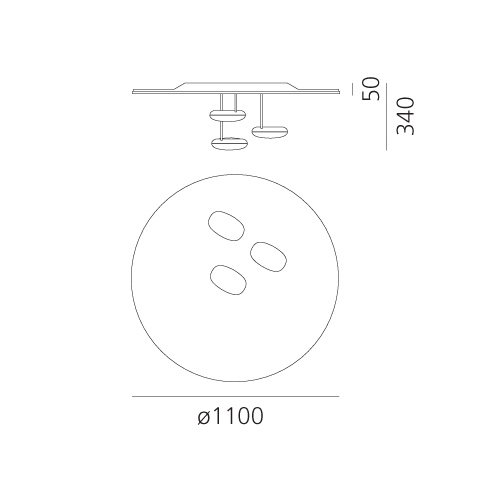

DIMENSIONS
  • Height: 320 mm
  • Diameter: 1100 mm
  • Impact Resistance: N/D
  • Glow Wire Test: 960°
SOURCES INCLUDED
  • Category: Led
  • Number: 3
  • Watt: 29W
  • Color temperature (K): 2700K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
Download all Data sheet PDF
