Stablight - Green amber

IP20

Downloadable files

3D Model
  • Stablight.3ds
  • Stablight.stp
Silhouette
  • Stablight.jpg
Instructions
  • Y513000394B F_IS STABLIGHT SUSPENSION.pdf
  • Y513000627-FOGLIO ISTRUZ-RICAMBIO VETRI STABLIGHT.pdf
IES Europe
  • DAL0027L12.IES
IES USA
  • DAL0027L12.IES
LDT File
  • DAL0027L12.LDT
LDT PDF
  • DAL0027L12.PDF
FEATURES
  • Product Code: DAL0027L12
  • Colour: Green amber
  • Installation: Suspension
  • Material: blown glass, metal
  • Series: Design Collection
  • Environment: Indoor
  • design by: Arik Levy
LUMINAIRE *
  • Watt: 16,5W
  • Delivered lumen output: 1019lm
  • Efficiency: 97%
  • Efficacy: 63.66lm/W
  • CRI: 90

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

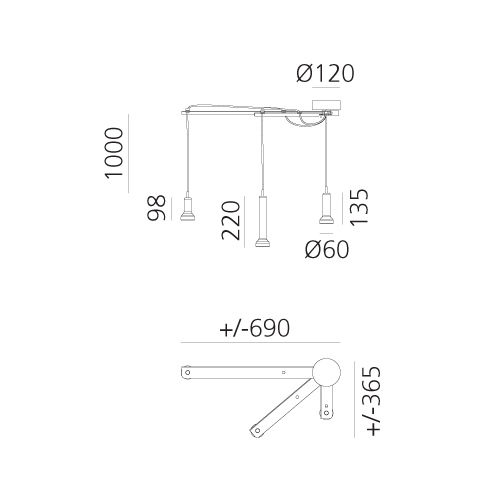

DIMENSIONS
  • Base Diameter: 120 mm
  • Max Extension Length: 730 mm
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 3
  • Watt: MAX 6,8W
  • Socket: GU10
