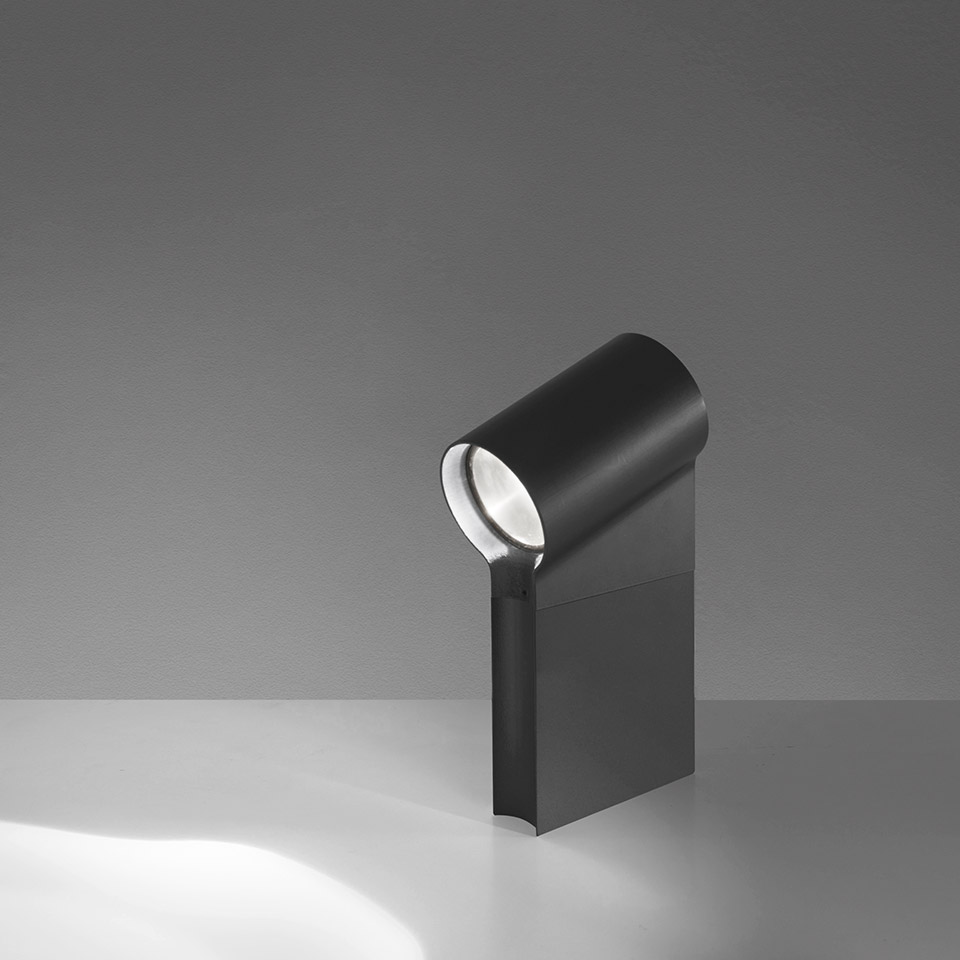

Oblique Bollard 45

IP65

Downloadable files

3D Model
  • Oblique Bollard 45.3ds
  • Oblique Bollard 45.stp
Silhouette
  • Oblique-Bollard-45.jpg
Instructions
  • Y513000475C-Oblique 450-750.pdf
IES Europe
  • T086200.IES
IES USA
  • T086200.IES
LDT File
  • T086200.LDT
LDT PDF
  • T086200.PDF
FEATURES
  • Product Code: T086200
  • Colour: Anthracite grey
  • Installation: Bollard
  • Material: Aluminum
  • Series: Architectural Outdoor
  • design by: Arik Levy
LUMINAIRE
  • Watt: 20W
  • Delivered lumen output: 1088lm
  • CCT: 3000K
  • Efficiency: 46%
  • Efficacy: 54.40lm/W
  • CRI: 90

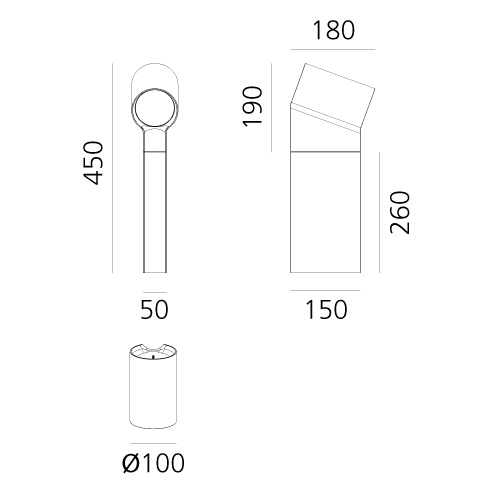

DIMENSIONS
  • Height: 450 mm
  • Diameter: 100 mm
  • Weight: kg 3
Download all Data sheet PDF
