Mouette Symmetric 2500 - Cable length 1900mm - Undimmable

IP40/20

Downloadable files

3D Model
  • Mouette Symmetric 2500.3ds
  • Mouette Symmetric 2500.stp
Silhouette
  • Mouette-Symmetric-2500-Undimmable-1900.jpg
Instructions
  • Y513000734_Mouette LED
DiaLux ULD File
  • AK00400.uld
IES Europe
  • AK00400.IES
IES USA
  • AK00400.IES
LDT File
  • AK00400.LDT
LDT PDF
  • AK00400.PDF
FEATURES
  • Product Code: AK00400
  • Colour: White opaline
  • Installation: Suspension
  • Material: Moulded polypropylene, aluminium
  • Series: Architectural Indoor
  • Area contract: Hospitality, Retail, Office, Culture
  • design by: Wilmotte & Industries
LUMINAIRE
  • Power Supply: Electronic integrated
  • Watt: 135W
  • Voltage: 220V-240V
  • Delivered lumen output: 12215lm
  • CCT: 3000K
  • Efficiency: 80%
  • Efficacy: 90.48lm/W
  • CRI: 80

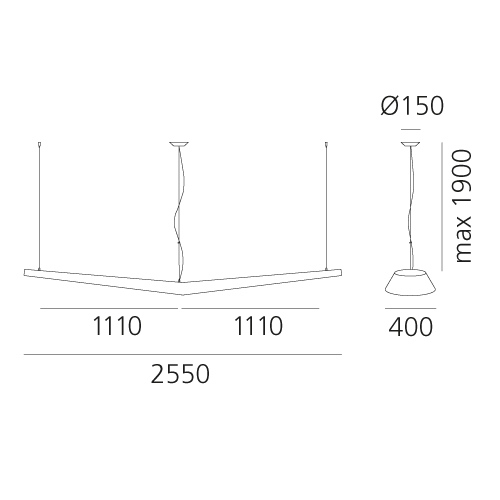

DIMENSIONS
  • Length: 2550 mm
  • Max Height from ceiling: 1900 mm
  • Weight: kg 8.5
  • Impact Resistance: N.D.
  • Glow Wire Test: 750°
Download all Data sheet PDF
