Talo Wall HALO - White

IP20 Dimmerable:

Downloadable files

2D Model
  • Talo_parete_Halo.dwg
  • Talo_parete_Halo.dxf
3D Model
  • Talo_parete_Halo.3ds
  • Talo_parete_Halo.stp
Silhouette
  • Sil_Talo HALO_Parete
Instructions
  • Y513000555A talo R7s W.pdf
IES Europe
  • 0613010A.IES
IES USA
  • 0613010A.IES
LDT File
  • 0613010A.LDT
LDT PDF
  • 0613010A.PDF
FEATURES
  • Product Code: 0613010A
  • Colour: White
  • Installation: Wall
  • Material: Aluminium, glass
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality
  • Emission: Direct/indirect
  • design by: Neil Poulton
LUMINAIRE *
  • Watt: 11W
  • Voltage: 220-240V

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

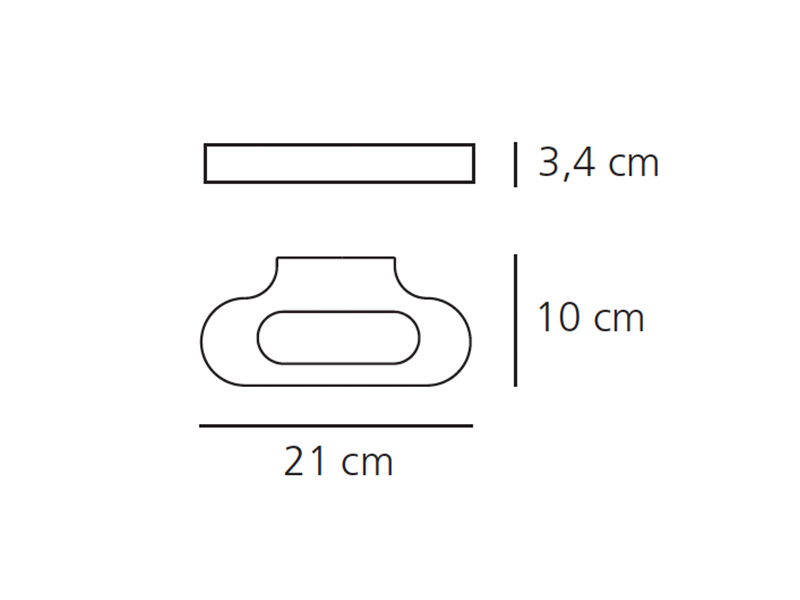

DIMENSIONS
  • Length: 210 mm
  • Width: 100 mm
  • Height: 34 mm
  • Glow Wire Test: 850°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 11W
  • Socket: R7s
AWARDS

Prix "L'Observeur du Design 2002" "Etoile 2002" - Paris (France) 2002;Reddot Design Award 2002 - Essen (Deutschland);iF Product Design Award 2002 - Hannover (Deutschland);Compasso d'Oro / ADI - Selezione 2002 Milano (Italia)

Download all Data sheet PDF
