Everything 150 - Round - Trimless - Adj - 28° 3000K - Black

IP 20/44

Downloadable files

3D Model
  • Everything 150 Round Adj Trimless.3ds
  • Everything 150 Round Adj Trimless.stp
Silhouette
  • Everything 150_Round_Adj_Trimless.jpg
Instructions
  • Y503300216H F_IS EVERYTHING 150.pdf
3D BIM Revit
  • Artemide Everything 150 EN.rfa
  • Artemide Everything 150 EN_Low Version.zip
IES Europe
  • M262005_0°.IES
  • M262005_30°.IES
IES USA
  • M262005_0°.IES
  • M262005_30°.IES
LDT File
  • M262005_0°.LDT
  • M262005_30°.LDT
LDT PDF
  • M262005_0°.PDF
  • M262005_30°.PDF
FEATURES
  • Product Code: M262005
  • Colour: Black
  • Installation: Recessed
  • Material: aluminium
  • Series: Architectural Indoor
  • design by: Ernesto Gismondi
LUMINAIRE
  • Watt: 20W
  • Delivered lumen output: 1847lm
  • CCT: 3000K
  • Efficiency: 59%
  • Efficacy: 92.35lm/W
  • CRI: 90

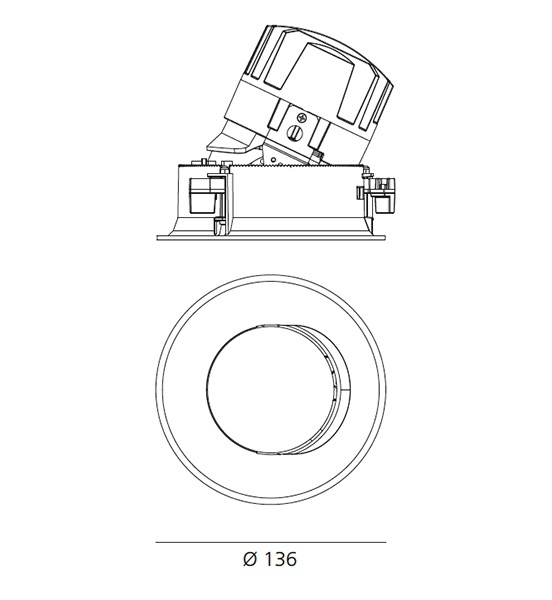

DIMENSIONS
  • Diameter: 136 mm
  • Cutout diameter: 136 mm
  • Recessed depth: 137 mm
  • Inclination: 30°
  • Rotation: 360°
  • Cutout shape: Rounded
  • Weight: kg 0.3
  • Glow Wire Test: 850°
  • Hole in false ceiling: Thickness 1mm - 13mm (10mm - 25mm without spacers)
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 24,4W
  • Color temperature (K): 3000K
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L80 (9K) 50000h
Notes

Driver 600mA SELV supplied separately.
Fitting to be completed with installation frame for recessing into ceiling.
Geo-LiFi Compatible

Accessories
Driver cc 32-36W - 700mA - 220-240 Vac - 103x67x21 (LxWxH) - Dimmable DALI
M079200
Driver 25W CC 220-240Vac 200-900mA DALI/PUSH 164x38x25 (LxWxH)
DV1003
DRIVER cc 32-36W - 700mA - 220-240 - 103x67x21 (LxWxH) - Dimmable PUSH/1-10V
M079300
Remote BLL interface for Artemide App to manage dimmable ceiling modules (up to 40 addresses)
DV1054APP
Round frame for recessed installation
M274800
Driver 32W CC 220-240Vac 350-725mA Not Dimmable Coprimorsetti IP20 108x43,5x22mm
DV1102
Power Kit Geo-LiFi - CC Mod=50% - 230x80x25h - Undimmable VLCcoding - The nominal flux for this application is halved
DV1060
Download all Data sheet PDF
