Boalum

IP20

Downloadable files

2D Model
  • Boalum_2D.dwg
  • Boalum_2D.dxf
3D Model
  • Boalum_3D.3ds
  • Boalum_3D.stp
Silhouette
  • Boalum_Silhouette
Instructions
  • Y513000918--FOGLIO ISTRUZ. BOALUM LED.pdf
FEATURES
  • Product Code: 0027110A
  • Colour: White
  • Installation: Table
  • Material: PVC
  • Series: Design Collection, Modern Classic
  • Environment: Indoor
  • Emission: Diffused
  • design by: Gianfranco Frattini, Livio Castiglioni
LUMINAIRE
  • Trasformer availability: Integrated
  • Watt: 20W
  • Voltage: 220-240V
  • Delivered lumen output: 780lm
  • CCT: 2700K
  • Efficiency: 68%
  • Efficacy: 39lm/W
  • CRI: 90

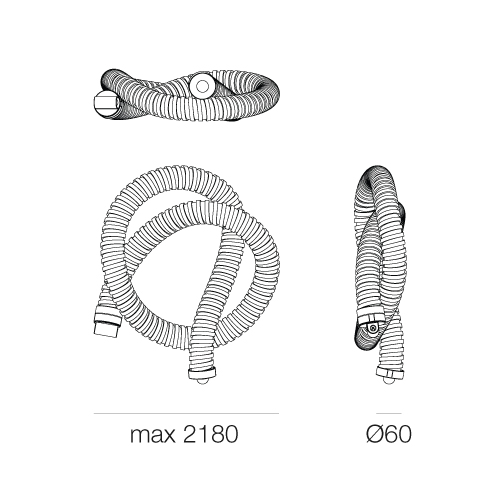

DIMENSIONS
  • Width: 2000 mm
  • Diameter: 60 mm
SOURCES INCLUDED
  • Category: Led
  • Number: 25
  • Watt: 0.8W
  • Delivered lumen output: 46lm
  • Color temperature (K): 2700K
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
  • Efficacy: 58lm/W
  • Service Life: 50000-L70
AWARDS

1975 – BIO 5 – Honour Nomination Ljubljana (Slovenia)

Notes

Several elements can be connected to each other up to a maximum of 4 Boalum, for a total development of about 8 meters.
